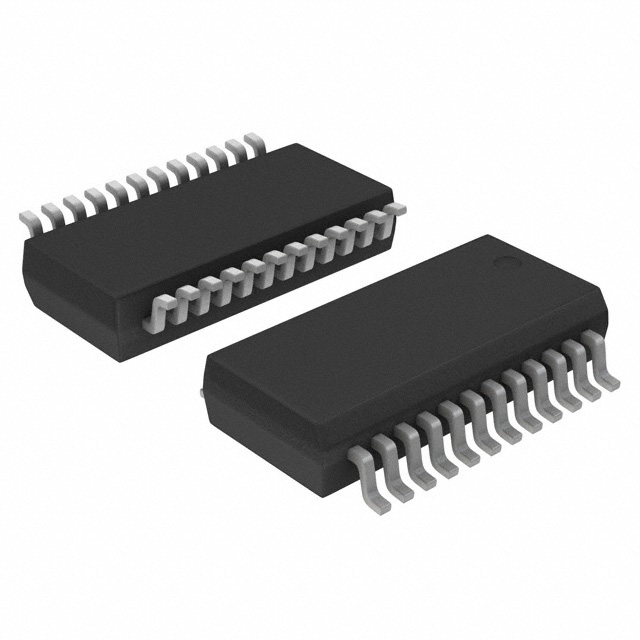

NXP 74HC4067DB,118 芯片, 模拟多路复用器/信号分离器, 单路, 16:1, SSOP24
The 74HC4067DB is a single-pole 16-throw SP16T Analog Switch suitable for use in analog or digital 16:1 multiplexer/demultiplexer applications. The switch features four digital select inputs S0, S1, S2 and S3, sixteen independent inputs/outputs Yn, a common input/output Z and a digital enable input E. When E is high, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
电源电压DC 2.00V min
输出接口数 1
输出电流 7.80 mA
供电电流 16 µA
电路数 1
通道数 1
针脚数 24
位数 8
耗散功率 0.5 W
带宽 100 MHz
输入数 16
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 100 MHz
耗散功率Max 500 mW
电源电压 2V ~ 10V
电源电压Max 10 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 24
封装 SSOP-24
封装 SSOP-24
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
