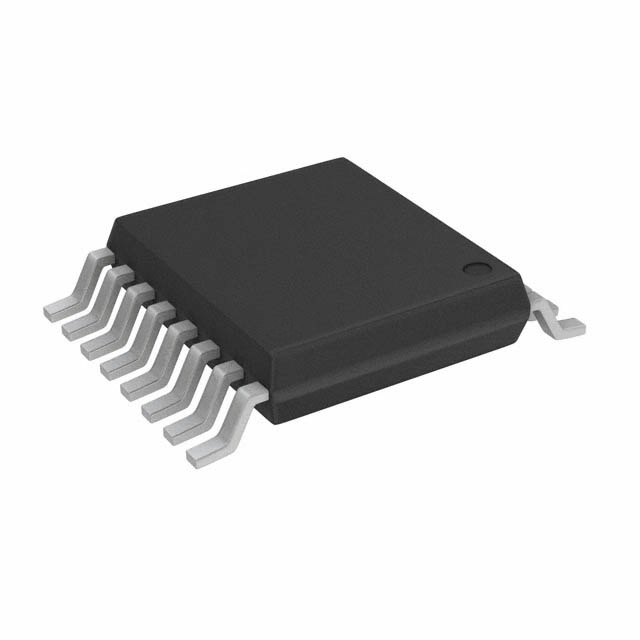

74HC173PW,118图片11
74HC173PW,118图片12
74HC173PW,118概述

NXP  74HC173PW,118  触发器, 三态非反相, 正沿, D, 88 MHz, TSSOP, 16 引脚

The 74HC173PW is a quad positive-edge trigger D-type Flip-flop with 3-state outputs. This high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL LSTTL. This 4-bit parallel load register with clock enable control, 3-state buffered outputs Q0 to Q3 and master reset MR. When the two data enable inputs E1\ and E2\\ are low, the data on the Dn inputs is loaded into the register synchronously with the low-to-high clock transition. When one or both En\ inputs are high one set-up time prior to the low-to-high clock transition, the register will retain the previous data. Data inputs and clock enable inputs are fully edge-triggered and must be stable only one set-up time prior to the low-to-high clock transition. The master reset input MR is an active high asynchronous input. When MR is high, all four flip-flops are reset cleared independently of any other input condition.

.
Gated input enable for hold do nothing mode
.
Gated output enable control
.
Edge-triggered D-type register
.
Asynchronous master reset
.
Bus driver output capability
.
Complies with JEDEC standard No. 7A
74HC173PW,118中文资料参数规格
技术参数

频率 88 MHz

电源电压DC 2.00V min

针脚数 16

时钟频率 95 MHz

输入电容 3.5 pF

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 2V ~ 6V

电源电压Max 6 V

电源电压Min 2 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 TSSOP-16

外形尺寸

高度 0.95 mm

封装 TSSOP-16

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, Communications & Networking

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买74HC173PW,118
型号: 74HC173PW,118
制造商: NXP 恩智浦
描述:NXP  74HC173PW,118  触发器, 三态非反相, 正沿, D, 88 MHz, TSSOP, 16 引脚
