73062

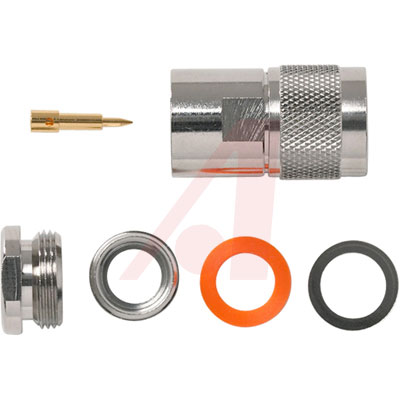

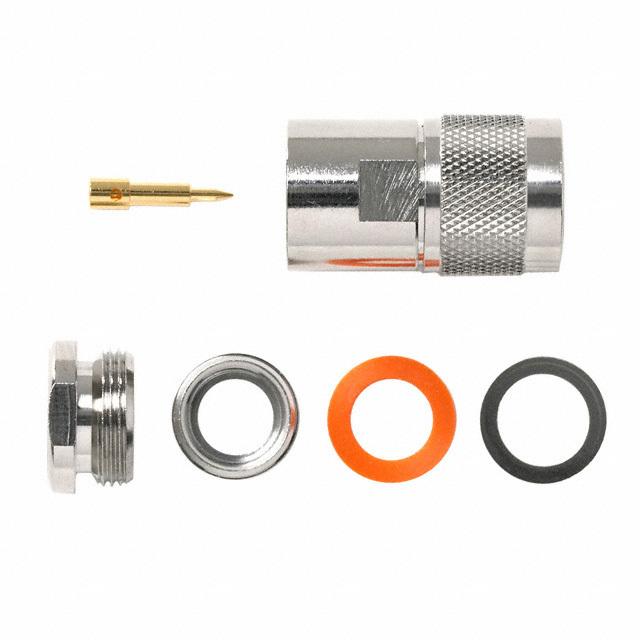

Conn Type N PL 0Hz to 11GHz 50Ω ST Cable Mount Gold

**Materials:**

**Center Conductor, Male: **Brass, Gold Plated

**Connector Body:** Brass, Nickel Plated

**Insulator:** PTFE

**Specifications:**

* Impedance: 50 Ω

* Frequency Range: DC–11 GHz

* Contact Resistance:

\- Center Conductor: ≤1.0 mΩ

\- Outer Conductor: ≤0.2 mΩ

* Insulation Resistance: ≤5000 MΩ

* Operating Voltage: 1000 V

* For CE compliance, do not hold in hand when voltages exceed 33 V/70 VDC

* VSWR: ≤1.35 V

* Number of Insertions: 500 Cycles Minimum

* DC–11 GHz Bandwidth

* Connectors Are Precision Machined

* Connector Accepts Cable Types RG/U: 8, 9, 144, 165, 213, 214, 216, 225
