74HC153D,653

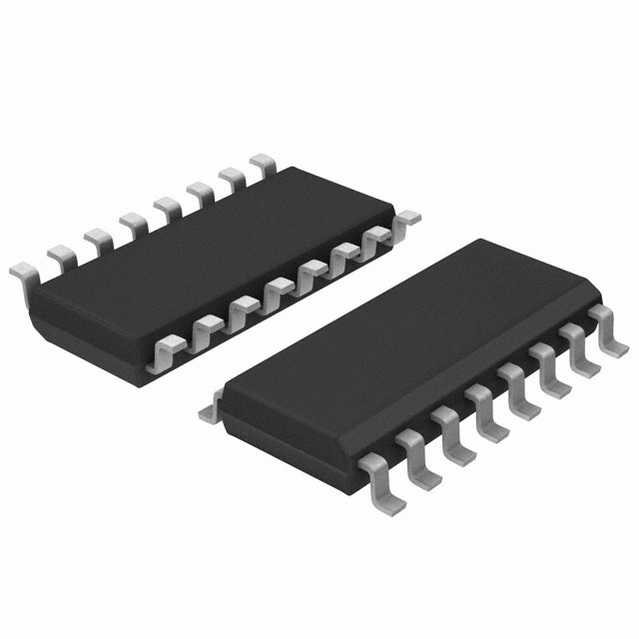

NXP  74HC153D,653  芯片, 多路复用器, 双路, 4:1, SOIC-16

The 74HC153D is a 4-input Dual Multiplexer features independent enable inputs nE\\ and common data select inputs S0 and S1. For each multiplexer, the select inputs select one of the four binary inputs and routes it to the multiplexer output nY. A high on E\ forces the corresponding multiplexer outputs low. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

.

Non-inverting outputs

.

Separate enable input for each output

.

Common select inputs

.

Permits multiplexing from n lines to 1 line

.

Enable line provided for cascading n lines to 1 line

.

CMOS Input level

.

Complies with JEDEC standard no. 7A
