79 52 125

mm |   |   | **图** ---|---|---|---|---|---|---   |   | mm | 软 | 介质 | 硬 |   79 02 120 | 524-3505 | 120 | 1.0 | 0.55 | 0.3 | 1 79 02 125 | 524-3555 | 125 | 1.5 | 0.8 | 0.5 | 2 79 22 120 | 524-3498 | 120 | 0.8 | 0.4 | - | 1 79 22 125 | 524-3533 | 125 | 1.2 | 0.85 | - | 2 79 32 125 | 524-3527 | 125 | 1.3 | 0.7 | 0.4 | 1 79 42 125 | 524-3511 | 125 | 1.0 | 0.55 | - | 1 79 52 125 | 288-926 | 125 | 1.3 | 0.7 | 0.4 | 1 79 62 125 | 288-948 | 125 | 1.0 | 0.55 | - | 1 ### 标准标准：DIN ISO 9654、9655### 电子钳

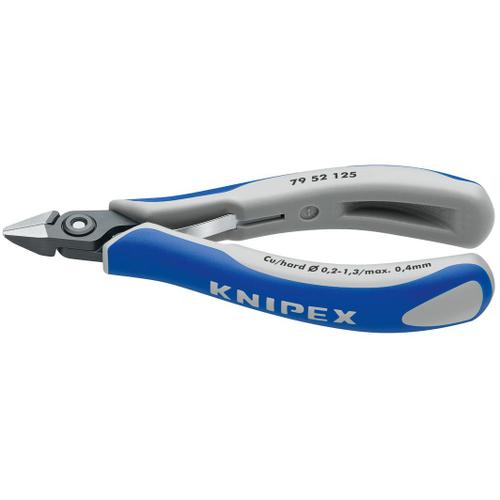

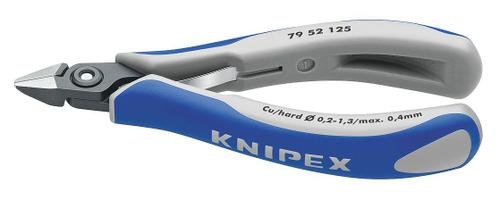

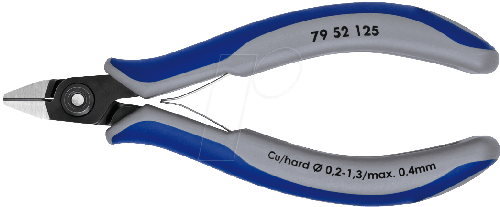

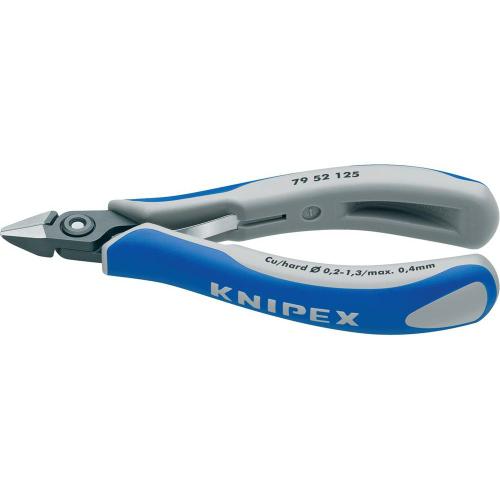

* Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics

.

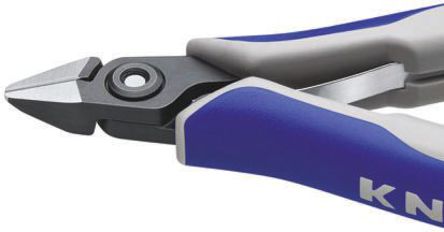

Very precisely ground and sharp cutting edges with very small bevels for exact cutting

.

Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC

.

Approx. 20 % lighter than conventional electronics pliers

.

Bolted joint with particularly carefully manufactured joint surfaces for even, low-friction movement

.

Smooth-running double spring for a gentle and even opening

.

Ergonomically optimised multi- component handles

.

Forged from chrome vanadium ball-bearing steel

.

With lead catcher - no uncontrolled loss of cut wire ends

.

Pointed head
