73049

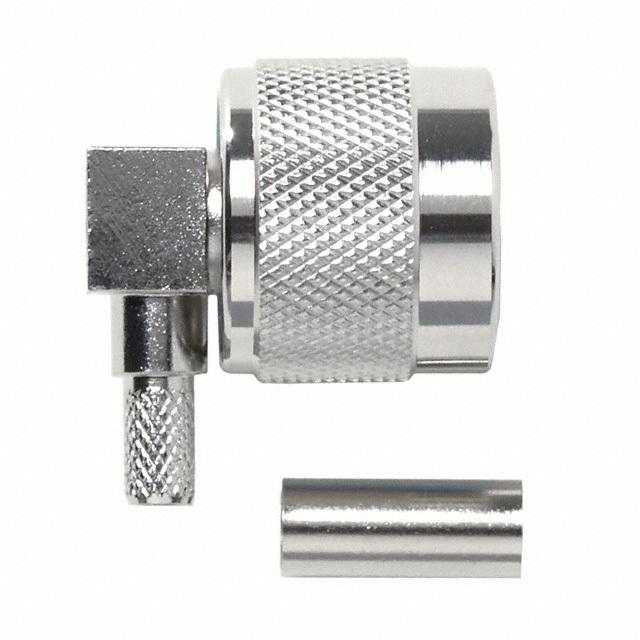

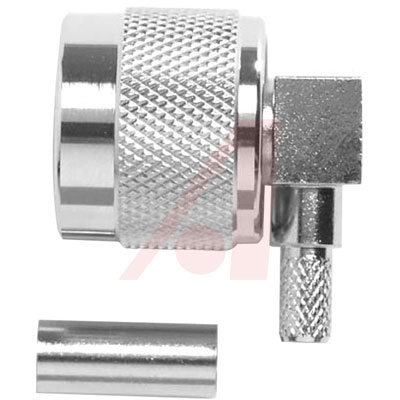

射频/同轴, N 插头, 直角型, 50 Ω, 压接

**Materials:**

**Center Conductor, Male**: Brass, Gold Plated

**Connector Body**: Brass, Nickel Plated

**Crimp Ferrule:** Copper, Nickel Plated

**Insulators:** PTFE

**Gasket:** Silicone Rubber

**Specifications:**

* Impedance: 50 Ω

* Frequency Range: DC–6 GHz

* Contact Resistance:

\- Center Conductor: ≤1.0 mΩ

\- Outer Conductor: ≤0.2 mΩ

* Insulation Reistance: ≤5000 MΩ

* Dielectric Withstand Voltage: 1500 V

* For CE Compliance, do not hold in hand when voltages exceed 33 V/70 VDC

* VSWR: ≤1.5 V

* Number of Insertions: 500 Cycles Minimum

* DC–6 GHz Bandwidth

* Connectors Are Precision Machined

* Meets Interface Requirements MIL-C-39012

* Connector Accepts Cable Types RG/U: 55, 142, 223
