74HCT 系列,NXP高速 CMOS 逻辑 工作电压 4.5 - 5.5 兼容性:输入 TTL、输出 CMOS ### 74HCT 系列
inverting Schmitt triggers from Semiconductors are designed specifically to clean up noisy analog signals and convert them into more manageable digital signals. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has an operating temperature range of -40 °C to 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V min
输出电流 25 mA
电路数 6
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14

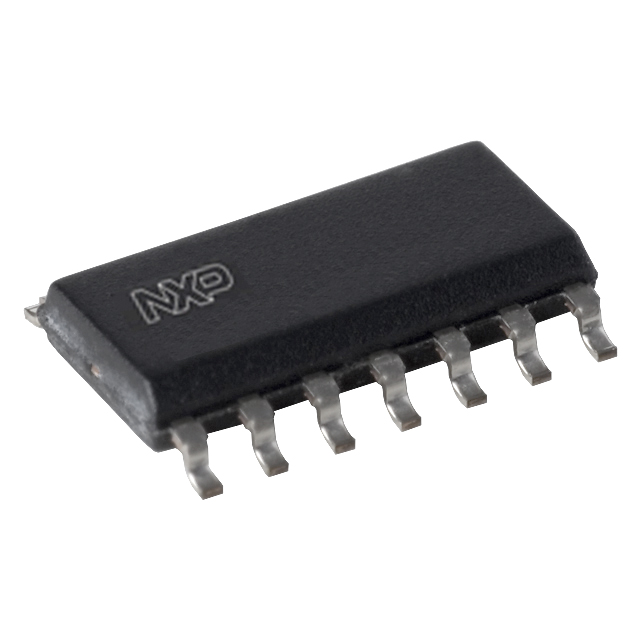

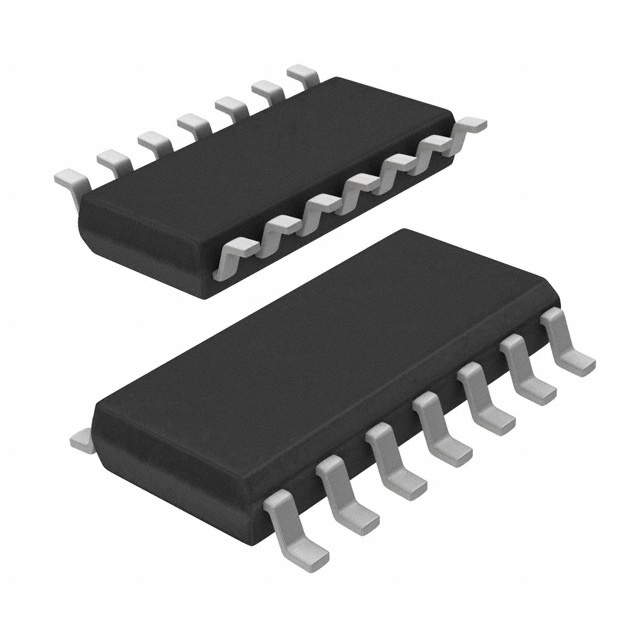

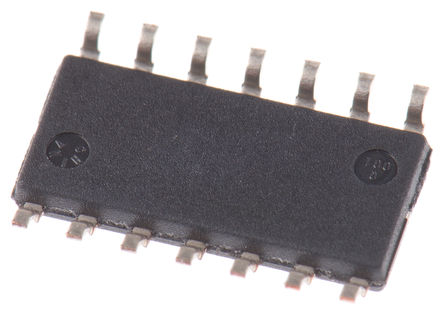

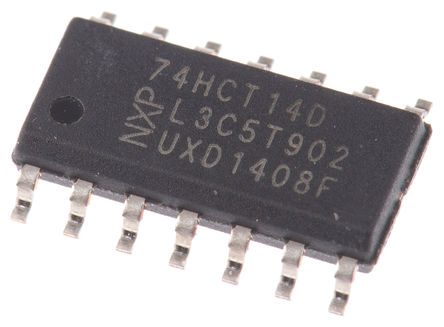

封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.45 mm
封装 SOIC-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
