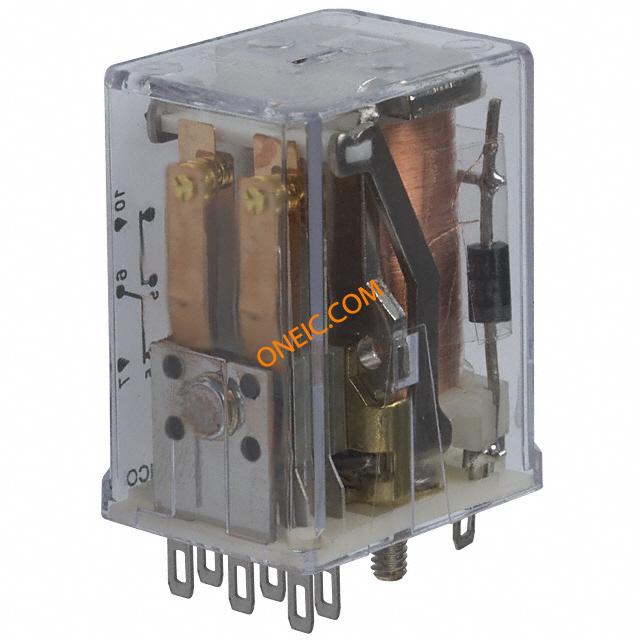

Electromechanical Relay 12VDC 185Ω 2A 4PDT 29.59mm 18.67mm 30.15mm Plug-In General Purpose Relay
R10 Series Relay
■ 1 through 8 form C CO contact arrangement
■ Broad range of coil options provides sensitivity ranging from 25 to 750mW
■ Various contacts switch from dry circuit to 7.5 amps
■ Many mounting and termination options
Typical applications
Coin changers, audio equipment, elevators, traffic controls, ultrasonic test equipment, parking toll readers.
艾睿:
Electromechanical Relay 12VDC 185Ohm 2A 4PDT 29.59x18.67x30.15mm Plug-In General Purpose Relay
Verical:
Electromechanical Relay 12VDC 185Ohm 2A 4PDT 29.59x18.67x30.15mm Plug-In General Purpose Relay
MASTER:
R10-E1Z4-V185=R10
Powell:
GPR Panel Plug-In Relays
Online Components:
R10-E1Z4-V185=R10
Electro Sonic:
R10-E1Z4-V185=R10
额定电压DC 28 V
额定电压AC 120 V
触点额定电流 2 A
线圈电压 12 VDC
线圈电流 64.86 mA
线圈电阻 185 Ω
额定电流Max 2 A
线圈电压DC 12 V
线圈功率 500 mW
额定电压DC Max 28 V
额定电压AC Max 120 V
安装方式 Plug In
引脚数 14
高度 30.15 mm
触点材质 Silver
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536490050
