Electromechanical Relay 3VDC 64Ω 2A DPDT 14.5mm 9.4mm 10.4mm SMD Signal Relay Automotive Medical
V23079E1208B301
Product Highlights
V23079 / P2 Relay Series
DC Actuating System
Input Voltage = 3 VDC
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 2 Amps.
艾睿:
Signal Relay 3VDC 2A DPDT14.5x9.4x10.4mm SMD Automotive Medical
Chip1Stop:
Electromechanical Relay 3VDC 64Ohm 2A DPDT 14.5mm 9.4mm 10.4mm SMD Signal Relay Automotive Medical
Verical:
Electromechanical Relay 3VDC 64Ohm 2A DPDT 14.5mm 9.4mm 10.4mm SMD Signal Relay Automotive Medical
MASTER:
P2-2-W-Relay
Powell:
3G COM Relay P2
Online Components:
V23079E1208B301
Electro Sonic:
V23079E1208B301
触点电镀 Gold
额定电压DC 220 V
额定电压AC 250 V
绝缘电阻 >1000 MΩ
输入电压DC 3.00 V
触点类型 DPDT
触点额定电流 2 A
线圈电压 3.00 V
线圈电流 46.88 mA
线圈功率DC 140 mW
线圈电阻 64 Ω
额定电流Max 2 A
线圈电压DC 3 V
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 220 V
额定电压AC Max 250 V
接触电阻Max <50 mΩ

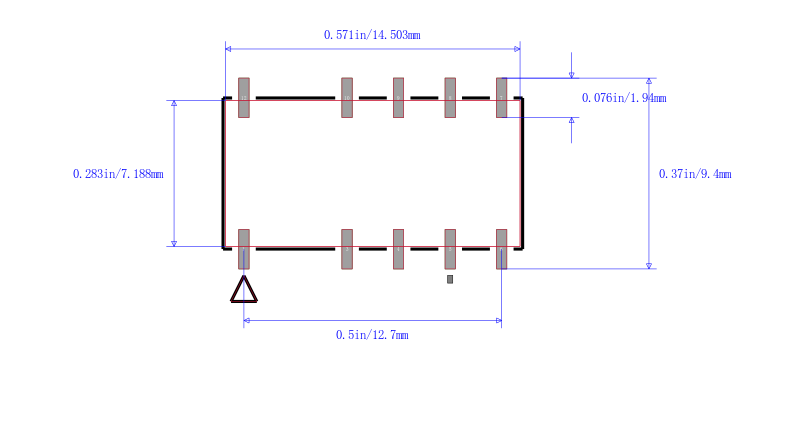

安装方式 Surface Mount

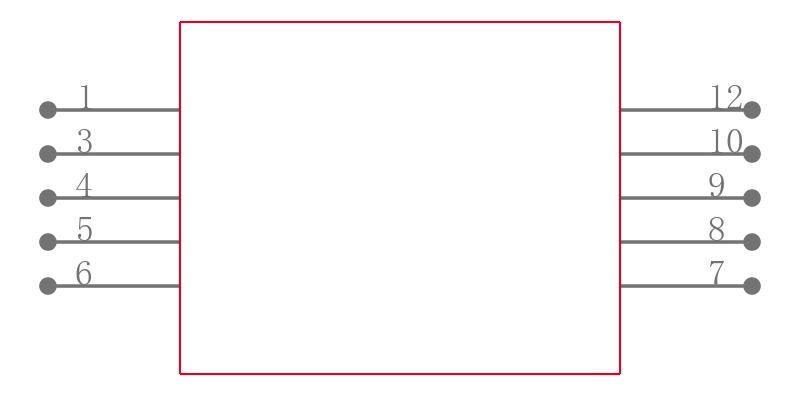

引脚数 10
封装 DIP
高度 10.4 mm
封装 DIP
触点材质 Silver Nickel, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
