794270-1

AMP FROM TE CONNECTIVITY  794270-1  电线密封件, 2路

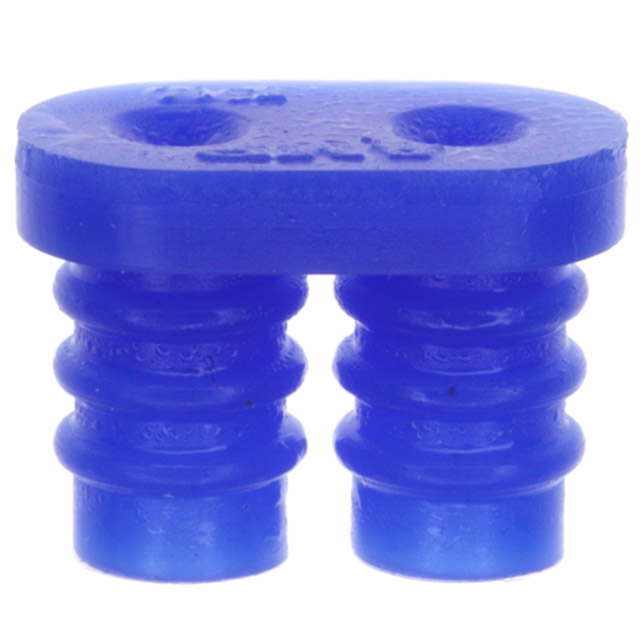

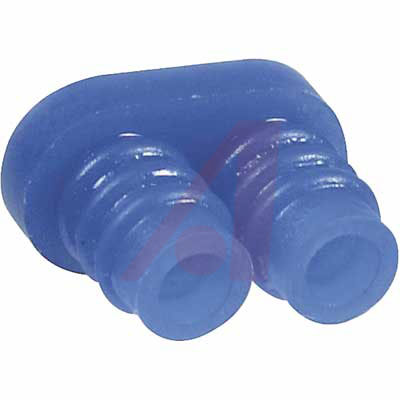

The is a Wire Seal Protector with blue silicone rubber body and 3.3mm maximum cable diameter. This wire seal protector is suitable for use with Universal MATE-N-LOK sealed connectors.

欧时:
TE Connectivity 通用 Mate-N-Lok 连接器电线密封TE Connectivity 通用 Mate-N-Lok 连接器电线密封基本是防溅/防浸的现有通用 mate-n-lok 连接器，当与两个自由悬挂的连接器配用时，需要两个密封和一个接口密封，用于电线对板连接时需要一个底部密闭的管座。为了完成密封，每个连接器有必要使用一次接口密封和两次电线密封 压接触点库存号 366-4376 或 366-4382 必须与这些密封一起使用 可用于 2 至 15 路类型材料： | 蓝色硅树脂橡胶 ---|--- 不渗透性： |   IP 56 绝缘 Ø： | 1.5 至 2.8 mm IP 57 绝缘 Ø： | 2.8 至 3.3mm ### 注参见库存号 366-1901 和范围，用于接口密封。### 认可CSA### TE Connectivity 通用 MATE-N-LOK™ 系列最大额定电流 A： |   ---|--- 悬空插头/插座 | 15 印刷电路板插头 | 12 额定电压 Vac/dc | 600 介电耐压 kV | 5 电路间 kV | 10 绝缘电阻 MΩ | 1000 最大触点电阻 mΩ | 3.5 温度范围 °C | -55 → +105 接合次数 | 50 绝缘材料 UL94V-2 | 天然聚酰胺 绝缘材料 UL94V-0 | 白色不透明尼龙 6.6 触点材料 | 铜，镀锡 触点材料（垂直插头） | 磷青铜，镀锡

得捷:
CONN WIRE SEAL 2POS UMNL BLUE

立创商城:
794270-1

贸泽:
Pin & Socket Connectors SPLASH PROOF SEAL 2P Wire

e络盟:
连接器电缆密封, 3.3 mm, 通用 Mate-N-Lok 连接器, Universal MATE-N-LOK系列, 有机硅

艾睿:
Ideal for any connection for wires this seal protector 794270-1 connector accessory manufactured from TE Connectivity will help make a strong connection. This product is 13.97 mm long, 10.16 mm tall and 7.62 mm deep.

Allied Electronics:
Connector, Soft Shell; Universal MATE-N-LOK; 2; 19; 600; Silicon Rubber; Blue

安富利:
Connector Accessories Seal Protector 2 POS Silicon Rubber Blue

Chip1Stop:
Connector Accessories Seal Protector Silicon Rubber Blue Automotive Bag

TME:
Gasket for wire; Universal MATE-N-LOK; 6.35mm; PIN:2

Verical:
Connector Accessories Seal Protector Straight Silicone Rubber Blue Bag/Box

Newark:
# AMP - TE CONNECTIVITY  794270-1  Heavy Duty Connector Insert, Universal MATE-N-LOK Series

MASTER:
This Wire Seal from TE features positions for 2 circuits and can match with Interface Seal part number 794269-1. The seal is designed to withstand splashing and submersion and can be applied to any Universal MATE-N-LOK products if an upgrade to a splash-p

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Online Components:
This Wire Seal from TE features positions for 2 circuits and can match with Interface Seal part number 794269-1. The ...

ICbanQ:
CONN WIRE SEAL 2POS UMNL BLUE

Electro Sonic:
This Wire Seal from TE features positions for 2 circuits and can match with Interface Seal part number 794269-1. The ...

Win Source:
CONN WIRE SEAL 2POS UMNL BLUE / Connector Plug, Sealing For Universal MATE-N-LOK Series
