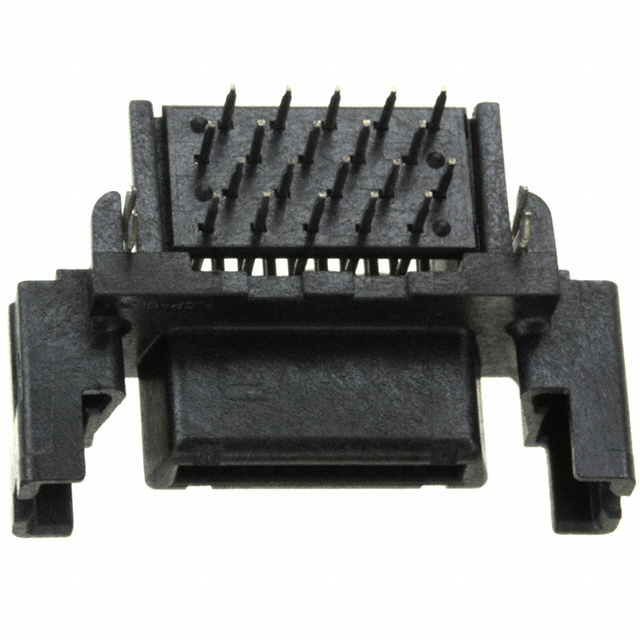

787653-2

CHAMP 系列 I 20 位置 直角 插座 0.050 带状 连接器

Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this SCSI connector from 787653-2 in order to interface with each other. This RCP connector"s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 100 VAC. This connector has a single port. 787653-2 is housed in liquid crystal polymer. This device has a maximum current rating of 1 A/contact. Its 20 terminals use the solder termination method. This SCSI connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 29.88 mm long, 9.85 mm tall and 18.97 mm deep.
