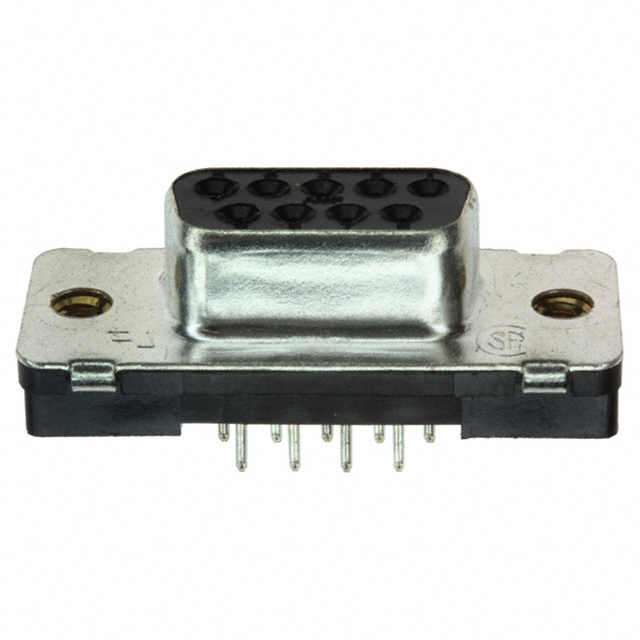

747150-7

HD20 系列 9 位置 直插座 板安装 D-Sub

9 位 D-Sub 插座，母型插口

得捷:
CONN D-SUB RCPT 9POS VERT SLDR

艾睿:
Using the 747150-7 DVI connector from TE Connectivity is fast and easy for communicating between serial connections in your circuit. It has a straight body orientation. Its pitch is 2.74 mm. It has a maximum voltage rating of 250 VDC|250VAC. This socket type connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. This 2-row connector has a single port. 747150-7 is housed in polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 9 terminals use the solder termination method. This product is 30.89 mm long, 12.16 mm tall and 12.55 mm deep. This DVI connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Conn; D-Sub; PCB Socket; 9Pos; STR; HD-20Series; 20AWG; FrontMetalShell

Jameco:
Connector D-Subminiature Receptacle 9 Position 2.74mm Solder Straight Through Hole 9 Terminal 1 Port

安富利:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port

Verical:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube

Newark:
# AMP - TE CONNECTIVITY  747150-7  Standard D Sub Connector, 9 Contacts, Receptacle, DE, AMPLIMITE HD-20 Series, Metal Body, Solder

MASTER:
RECEPTACLE ASSEMBLY, SIZE 1, 9 POSITION FRONT METAL SHELL, WITH OR WITHOUT SCREWLOCKS OR INSERTS,

Powell:
Standard Board Mount Connectors

Online Components:
09 RCPT SP/FMS INSRT

Electro Sonic:
09 RCPT SP/FMS INSRT
