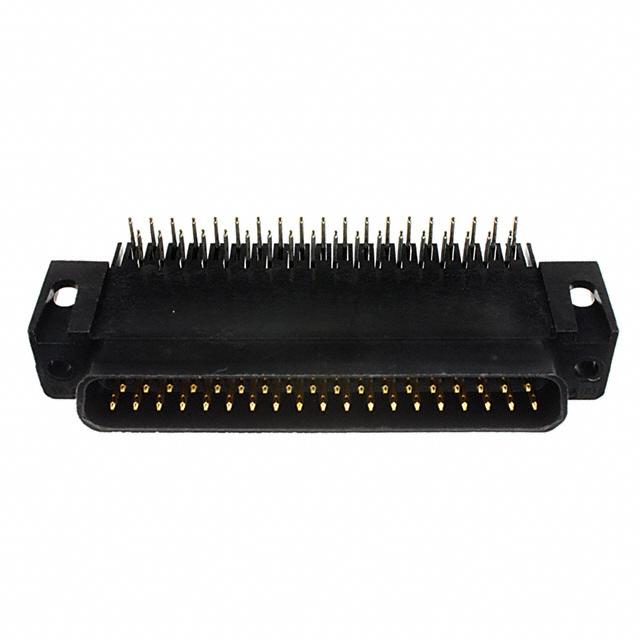

HD-20 系列 37 位置 直角 插头 标准 板安装 D-Sub 连接器
37 位 D-Sub 插头,公引脚
得捷:
CONN D-SUB PLUG 37POS R/A SLDR
艾睿:
Conn D-Subminiature PIN 37 POS 2.76mm Solder RA Thru-Hole 37 Terminal 1 Port Package
Powell:
Standard Board Mount Connectors
Electro Sonic:
37 APFL PLUG RA 590
触点数 37
极性 Male
触点电镀 Gold Flash, Gold Flash over Nickel, Tin over Nickel, Tin Lead
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 37
额定电流Max 3.1A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 2.74 mm
长度 69.3 mm
宽度 24.6 mm
高度 11.48 mm
引脚间距 2.74 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
材质 Plastic
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
