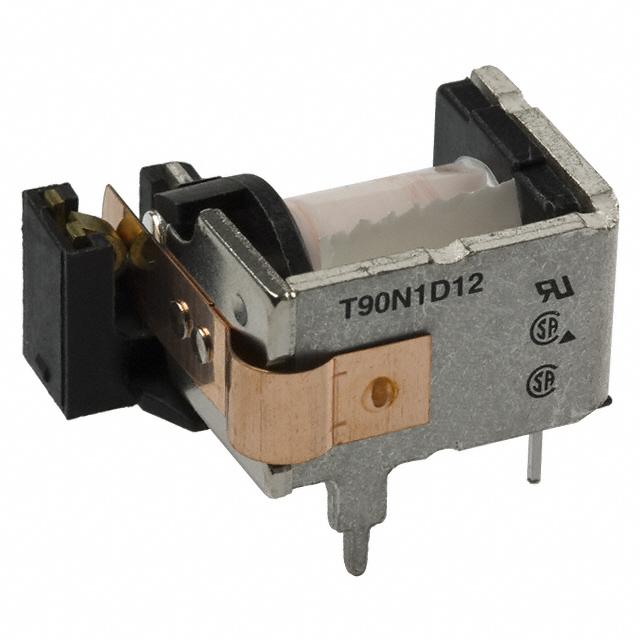

Electromechanical Relay SPST-NO 30A 24VDC 660Ω Through Hole
T90N1D42-24=T90
Product Highlights
Relay Type = Power PCB/Panel Mount Relay
Relay Style = PCB
T90 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 30 Amps.
艾睿:
Power Relay 24VDC 30A SPST-NO30.5x24.13x17.27mm THT
安富利:
Electromechanical Relay SPST-NO 30A 24VDC 660Ohm Through Hole
Verical:
Electromechanical Relay 24VDC 660Ohm 30A SPST-NO 30.5x24.13x17.27mm THT Power Relay
MASTER:
T90N1D42-24=T90
Powell:
Power PCB Relays
Online Components:
T90N1D42-24=T90
Electro Sonic:
T90N1D42-24=T90
输入电压DC 24.0 V
触点类型 SPST-NO
触点额定电流 30.0 A
线圈电压 24.0V, 24.0Vmax
线圈电流 36 mA
线圈功率DC 870 mW
线圈电阻 660 Ω
载流 30.0 A
额定电流Max 30 A
线圈电压DC 24 V
开关电流Max 30 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压AC Max 277 V
安装方式 PCB
引脚数 5
高度 17.27 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
