LCD上显示 减震设备确保可读性值的情况的存在脉动或压力峰值 可编程的参数存储和可保持发生电源故障时 集成自我诊断功能电路破裂模数 错误信息传感器破裂模数 功率消耗4至20mA 坚固且紧凑型塑料箱 Digital Pressure Measurement – Indicators, Displays, Modules

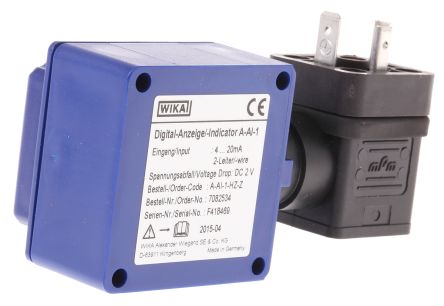

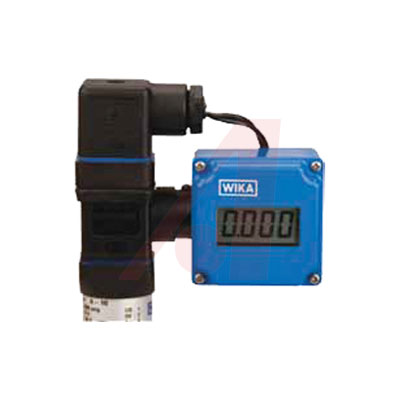

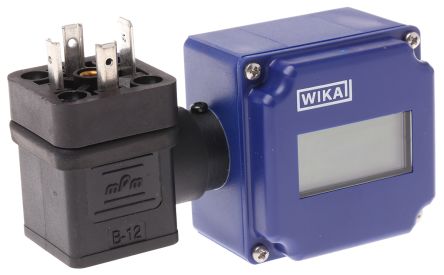

The model A-Al-1 attachable indicator provides an ideal solution for a local read-out with simultaneous 4-20 mA signal transmission. The universal programmability and simple mounting allows the display to retrofit existing installed transmitters equipped with a full size DIN plug. The scaling is adjusted by accessing three buttons under the front cover. The user is prompted through the programming steps by a logically arranged menu and prompts displayed on the LCD.
* Display: 0.4" High LCD
* Programmable Display Range: –1999 to +9999
* Accuracy: <0.2% Span
* Loop Power — No Additional Power Supply Required
* Voltage Drop: 3 VDC
* Maximum Current Rating: 40 mA
