772 系列脉冲变压器，用于耦合、闸流晶体管/三端双向可控硅开关元件和中型开关模式电源应用 串联任何两个绕组可以修改标准匝数比 ### 600 Ohm 线路隔离，脉冲匹配和高频变压器
脉冲 772 系列
脉冲变压器，用于耦合、闸流晶体管/三端双向可控硅开关元件和中型开关模式电源应用
串联任何两个绕组可以修改标准匝数比
得捷:
PULSE XFMR 1:1:1 1MH
欧时:
### 脉冲变压器 772 系列脉冲变压器，用于耦合、闸流晶体管/三端双向可控硅开关元件和中型开关模式电源应用 串联任何两个绕组可以修改标准匝数比 ### 600 Ohm 线路隔离，脉冲匹配和高频变压器
艾睿:

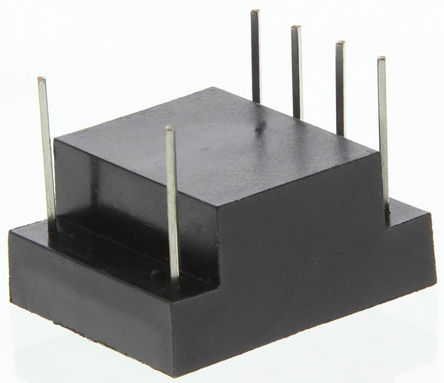

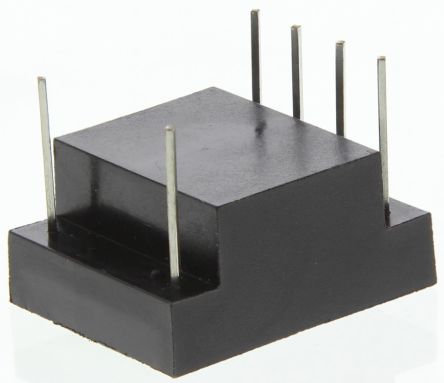

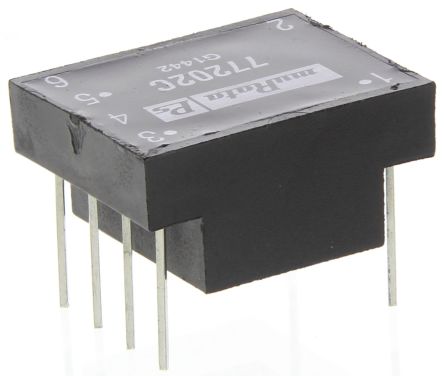

Are you trying to produce electrical pulses from the transmission of digital information? Then use this 77202C pulse transformer from Murata Power Solutions for better optimization! This pulse transformer has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has 6 terminals. It also has a pulse transformer. The maximum DCR on the primary side is 0.25 Ohm, while its 0.22/0.28 Ohm on the secondary side. It has a turn ratio of 1:1:1. This product is 25.4 mm long, 12.3 mm tall and 20.3 mm deep.
安富利:
Pulse Transformer 1:1:1 2500Vrms 0.25Ohm Prim. DCR 0.22Ohm/0.28Ohm Sec. DCR 40pF 120Vus Through Hole
Verical:
Pulse Transformer 1:1:1 2500Vrms 0.25Ohm Prim. DCR 0.22Ohm/0.28Ohm Sec. DCR 40pF 6 Terminal PC Pin Thru-Hole
