796642-2

TE CONNECTIVITY / BUCHANAN  796642-2  接线端子块, 针座, 5MM, 2路

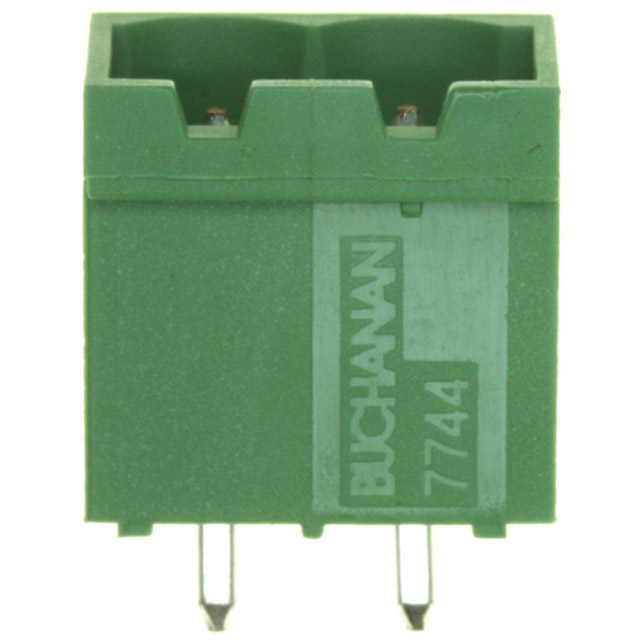

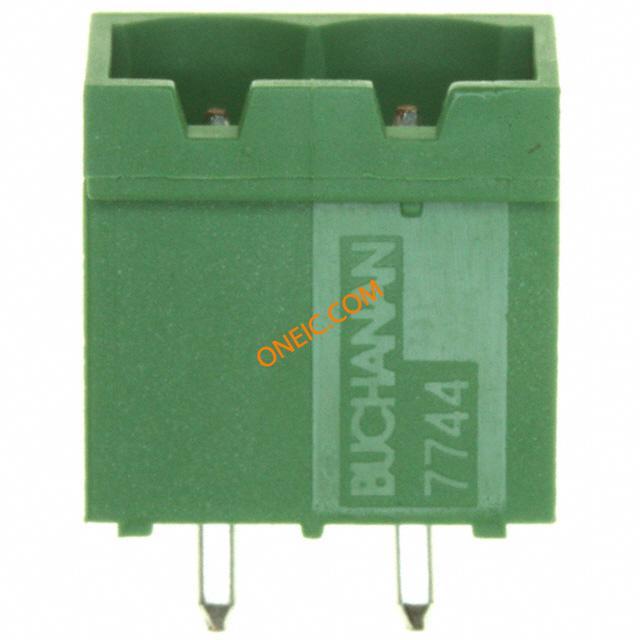

The is a 2-position 15A green Terminal Block Header with through-hole vertical contact mounting and 270° top mating angle. It has tin-plated copper alloy contact with glass-filled polyamide 6.6 housing.

.

UL94V-0 Flammability rating

得捷:
TERM BLOCK HDR 2POS VERT 5MM

贸泽:
Pluggable Terminal Blocks 2POS 5.0MM CE VRT HD

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s shrouded 796642-2 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. Its pitch is 5 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 15 A/contact. 796642-2 is housed in green polyamide 6/6. It uses the solder termination method. This product is 12 mm long, 12 mm tall and 8.35 mm deep.

安富利:
Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides M 2 POS 5mm Solder ST Top Entry Thru-Hole Box

MASTER:
TERMINAL BLOCK HEADER ASSEMBLY 180 DEGREE, CLOSED ENDS, 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
2POS 5.0MM CE VRT HDR,TRM BLK

Electro Sonic:
2POS 5.0MM CE VRT HDR,TRM BLK
