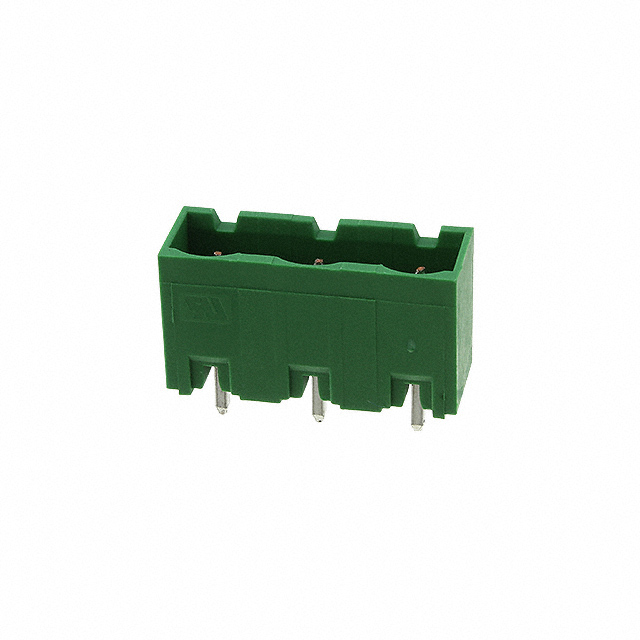

796980-3

Conn Shrouded Header HDR 3POS 7.62mm Solder ST Thru-Hole

3 针位端子块 接头，公引脚，带罩（4 面） 0.300"（7.62mm） 垂直 通孔

得捷:
TERM BLOCK HDR 3POS VERT 7.62MM

贸泽:
Pluggable Terminal Blocks HDR 03P VRT GRN C/E

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s shrouded 796980-3 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a header type gender. It has a straight body orientation. Its pitch is 7.62 mm. This device has a maximum current rating of 15 A/contact. 796980-3 is housed in green polyamide 6/6. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 22.06 mm long, 12 mm tall and 8.35 mm deep.

安富利:
Conn Shrouded Header HDR 3 POS 7.62mm Solder ST Thru-Hole

MASTER:
Conn Shrouded Header 4 Sides HDR 3 POS 7.62mm Solder ST Thru-Hole Box

Powell:
Terminal Block Connectors

Online Components:
3 POS TERMI-BLOK VERT HDR 7.62

Electro Sonic:
3 POS TERMI-BLOK VERT HDR 7.62
