集管和线壳 MR RECEPTACLE AU PHB
\- 插口 触点 镀金 24-26 AWG 压接
得捷:
CONN SOCKET 24-26AWG CRIMP GOLD
立创商城:
794000-2
贸泽:
集管和线壳 MR RECEPTACLE AU PHB
艾睿:

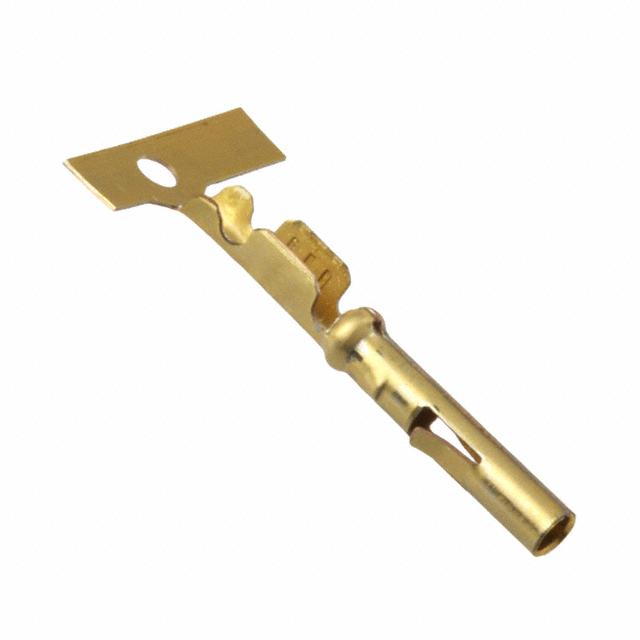

This 794000-2 connector contact from TE Connectivity comes with a variety of features based on the application. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 9 A. This has a Connector Headers and PCB Receptacles connector. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its wire is 24-26 AWG. It uses the crimp termination method. This product is 16.76 mm long and 2.57 mm. This connector contact has a minimum operating temperature of -55 °C and a maximum of 85 °C.
安富利:
Contact SKT Crimp ST Cable Mount Strip
Verical:
Contact SKT Crimp ST Cable Mount 24-26AWG T/R
Newark:
# AMP - TE CONNECTIVITY 794000-2 Contact, MR Series, Socket, Solder, 24 AWG, Gold Plated Contacts
MASTER:
RECEPTACLE, MR
Powell:
.165" Centerline, 250 V, 9 A max.
Online Components:
MR RECEPTACLE AU PHBZ
Electro Sonic:
MR RECEPTACLE AU PHBZ
极性 Female
线规 24AWG ~ 26AWG
触点电镀 Gold
额定电流Max 9 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 5 mΩ
安装方式 Solder
封装 -
封装 -
触点材质 Phosphor Bronze
材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
