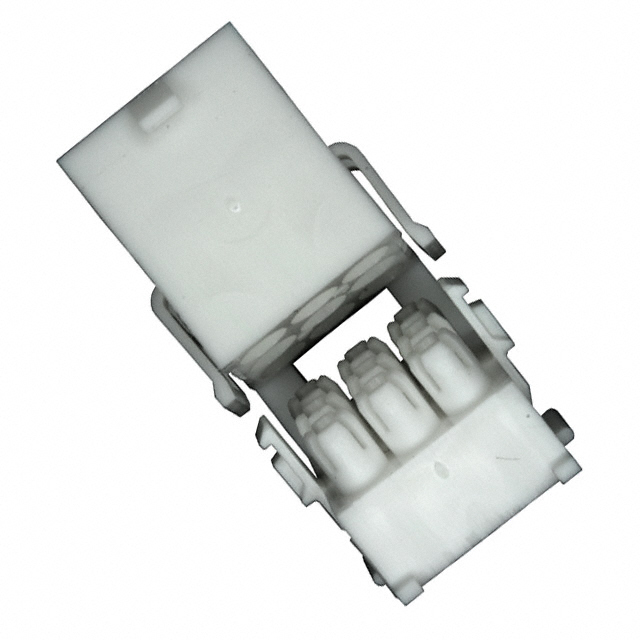

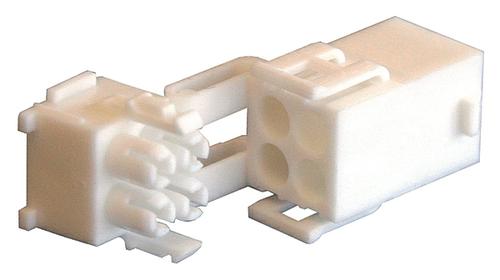

794195-1

塑壳

09P MINI UMNL2 CAP HSG UL94V0

Product Highlights

Housing

Housing Type = Receptacle Cap

Mini-Universal MATE-N-LOK 2

4.14 mm Centerline

Matrix Contact Layout

立创商城:
塑壳

得捷:
CONN CAP 9POS MINI UNIV-MATE 2

艾睿:
Ensure a complete connection between two different circuit boards is made using TE Connectivity&s;s 794195-1 discrete wire housing. This RCP connector has 9 RCP contacts. It has a maximum voltage rating of 600 VAC. Its pitch is 4.14 mm. This is a 3-row connector. It has a receptacle type gender. It has a straight body orientation. This device has a maximum current rating of 9.5 A/contact. 794195-1 is housed in white nylon. This product is 18.69 mm long, 18.69 mm tall and 24.51 mm deep.

安富利:
Conn Housing RCP 9 POS 4.14mm Crimp ST Individual

Verical:
Conn Housing RCP 9 POS 4.14mm Crimp ST Cable Mount Automotive Bag

MASTER:
CAP, 9 CIRCUIT, MINI UNIVERSAL MATE-N-LOK 2

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
09P MINI UMNL2 CAP HSG UL94V0

Electro Sonic:
09P MINI UMNL2 CAP HSG UL94V0
