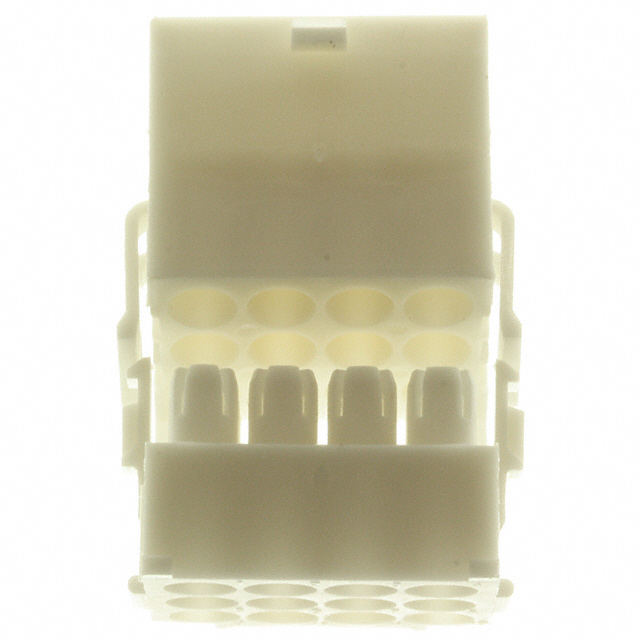

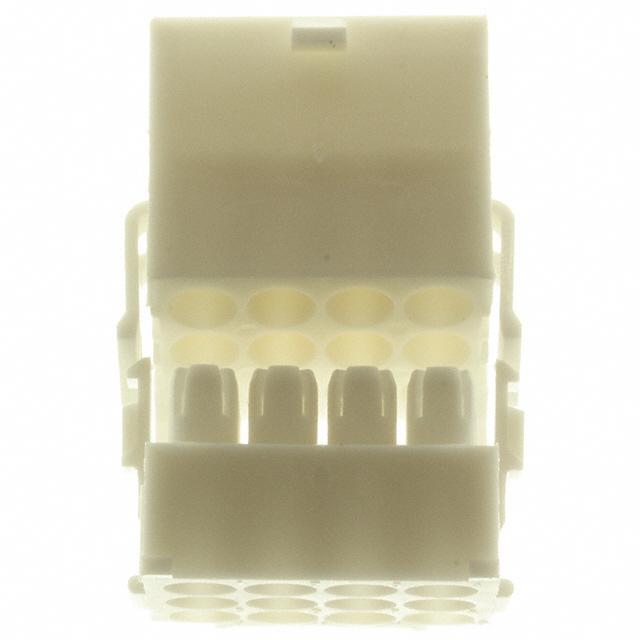

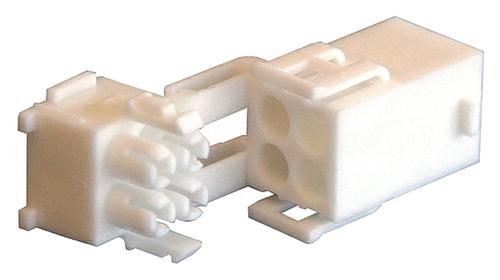

794201-1

管脚和插座连接器 CONN CAP 12 POS

12P MINI UMNL2 CAP HSG MATRIX

Product Highlights

Housing

Mini-Universal MATE-N-LOK 2

Number of Circuits = 12

4.14 mm Centerline, Matrix

Matrix Contact Layout

得捷:
CONN RCPT HSG 12POS 4.14MM

贸泽:
管脚和插座连接器 CONN CAP 12 POS

艾睿:
When using discrete wires in a project you should use this 794201-1 discrete wire housing from TE Connectivity if a direct socket to board linkage is not functional. This RCP connector has 12 RCP contacts. It has a straight body orientation. It has a maximum voltage rating of 600 VAC. This is a 2-row connector. Its pitch is 4.14 mm. It has a receptacle type gender. This device has a maximum current rating of 9.5 A/contact. 794201-1 is housed in white nylon. This product is 22.89 mm long, 18.69 mm tall and 24.51 mm deep.

安富利:
Conn Housing RCP 12 POS 4.14mm Crimp ST Individual

Chip1Stop:
Conn Housing RCP 12 POS 4.14mm Crimp ST Cable Mount Automotive Bag

Verical:
Conn Housing RCP 12 POS 4.14mm Crimp ST Cable Mount White Bag

MASTER:
CAP, 12 CIRCUIT,MATRIX, MINI UNIVERSAL MATE-N-LOK@PZTM 2

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
12P MINI UMNL2 CAP HSG MATRIX

Electro Sonic:
12P MINI UMNL2 CAP HSG MATRIX
