776427-4

776427-4图片1
776427-4图片2
776427-4图片3
776427-4图片4

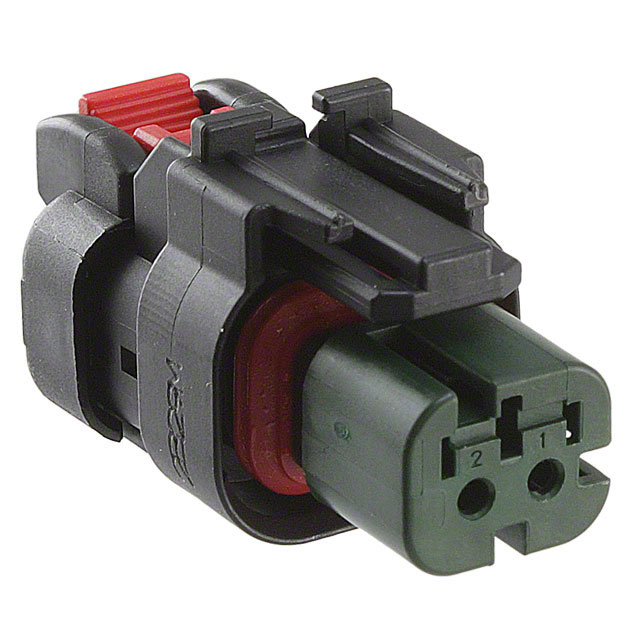

776427-4图片5
776427-4图片6
776427-4概述

2 位置 单排 空中对接 Ampseal 插座

2 矩形 - 外壳 插头 黑色 0.177"(4.50mm)


得捷:
CONN PLUG HSG 2POS 4.50MM


立创商城:
776427-4


e络盟:
压盖, AS 16, 2P 插头组件, KEY 4


艾睿:
Think of TE Connectivity&s;s 776427-4 discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This PL connector has 2 PL contacts. Its pitch is 4.5 mm. This is a 1-row connector. It has a plug type gender. It has a straight body orientation. 776427-4 is housed in green thermoplastic. This product is 23.5 mm tall.


安富利:
Conn Housing PL 2 POS 4.5mm Crimp ST


Verical:
Conn Housing PL 2 POS 4.5mm Crimp ST Cable Mount Green Package Automotive


Newark:
AS 16, 2P PLUG ASSY, KEY 4


MASTER:
PLUG ASSEMBLY, 2 POSITION, SINGLE ROW AMPSEAL 16


Online Components:
AS 16, 2P PLUG ASSY, KEY 4


Electro Sonic:
AS 16, 2P PLUG ASSY, KEY 4


776427-4中文资料参数规格
技术参数

触点数 2

排数 1

易燃性等级 UL 94 HB

针脚数 2

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压Max 250 VDC

额定电压 250 VDC

封装参数

封装 插件

外形尺寸

宽度 36.75 mm

高度 23.5 mm

封装 插件

物理参数

外壳颜色 Green

颜色 Black

材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538906000

数据手册

在线购买776427-4
型号: 776427-4
描述:2 位置 单排 空中对接 Ampseal 插座
