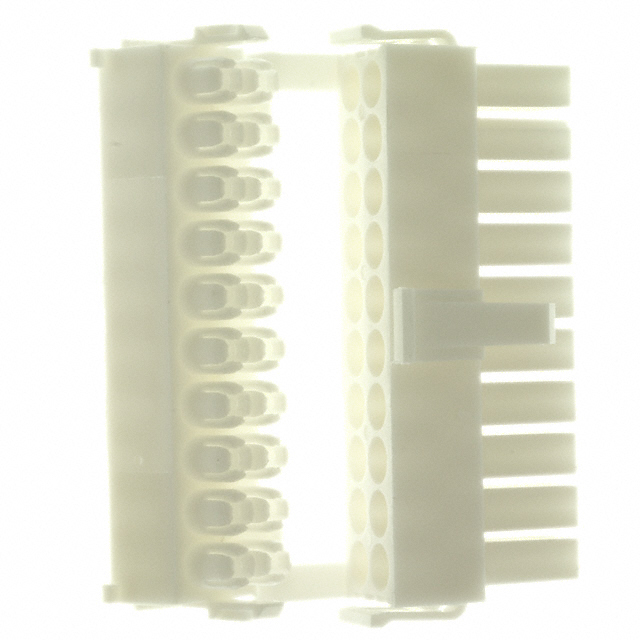

794210-1

20 位置 0.163 英寸 中心线 600 V 9.5 A Mate N Lok 空中对接式 插头

20P MINI UMNL2 PLUG HSG UL94V0

Product Highlights

Housing

Mini-Universal MATE-N-LOK 2

Number of Circuits = 20

4.14 x 4.14 mm Centerline, Matrix

Double-Row Contact Layout

得捷:
CONN PLUG HSG 20POS 4.14MM

艾睿:
TE Connectivity brings you their latest 794210-1 discrete wire housing, a component that makes possible a linkage between your PCB and socket. This PL connector has 20 PL contacts. It has a plug type gender. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 600 VAC. Its pitch is 4.14 mm. This device has a maximum current rating of 9.5 A/contact. This product is 47.68 mm long, 17.25 mm tall and 23.75 mm deep. 794210-1 is housed in white nylon.

安富利:
Conn Housing PL 20 POS 4.14mm ST Individual

Verical:
Conn Housing PL 20 POS 4.14mm ST Cable Mount White Bag

Newark:
# AMP - TE CONNECTIVITY  794210-1  Connector Housing, Mini Universal MATE-N-LOK Series, Plug, 20 Positions

MASTER:
PLUG, 20 CIRCUIT, MINI UNIVERSAL MATE-N-LOK

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
20P MINI UMNL2 PLUG HSG UL94V0

Electro Sonic:
20P MINI UMNL2 PLUG HSG UL94V0
