776087-2

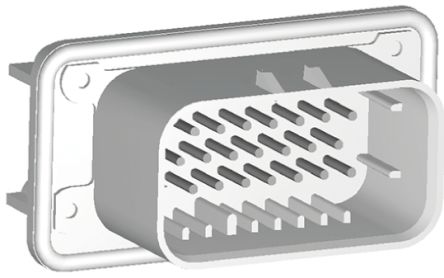

TE Connectivity AMPSEAL 印刷电路板管座，IP67 保护等级AMPSEAL 汽车印刷电路板安装管座具有彩色键接、4mm 中心线和粘接到法兰的硅衬垫，防水可达到 IP67 等级。 这些 AMPSEAL 汽车印刷电路安装板管座提供垂直或直角安装。### TE Connectivity AMPSEALAMPSEAL 连接器以其坚固的可靠性（甚至在高温汽车和工业应用中）而著称。 这些重型连接器不仅防水，还因其接口和电线的 2 路密封而潜在水中。

AMPSEAL 印刷电路板管座，IP67 保护等级

AMPSEAL 汽车印刷电路板安装管座具有彩色键接、4mm 中心线和粘接到法兰的硅衬垫，防水可达到 IP67 等级。 这些 AMPSEAL 汽车印刷电路安装板管座提供垂直或直角安装。

### TE Connectivity AMPSEAL

AMPSEAL 以其坚固的可靠性（甚至在高温汽车和工业应用中）而著称。 这些重型连接器不仅防水，还因其接口和电线的 2 路密封而潜在水中。

得捷:
CONN HEADER R/A 23POS 4MM

立创商城:
776087-2

欧时:
### TE Connectivity AMPSEAL 印刷电路板管座，IP67 保护等级AMPSEAL 汽车印刷电路板安装管座具有彩色键接、4mm 中心线和粘接到法兰的硅衬垫，防水可达到 IP67 等级。 这些 AMPSEAL 汽车印刷电路安装板管座提供垂直或直角安装。### TE Connectivity AMPSEALAMPSEAL 连接器以其坚固的可靠性（甚至在高温汽车和工业应用中）而著称。 这些重型连接器不仅防水，还因其接口和电线的 2 路密封而潜在水中。

艾睿:
This robust 776087-2 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 23 contacts that are made out of brass and plated with tin. Its pitch is 4 mm. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This connector has a single port. 776087-2 is housed in polybutylene terephthalate. This device has a maximum current rating of 8 A/contact. This product is 60.8 mm long, 32.1 mm tall and 37.9 mm deep. This power connector has an operating temperature range of -40 °C to 125 °C. Its 23 terminals use the solder termination method.

Allied Electronics:
AMPSEAL 23 way right angle plug header

安富利:
Conn Power HDR 23 POS 4mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header HDR 23 POS 4mm Solder RA Side Entry Thru-Hole Automotive

MASTER:
Conn Shrouded Header HDR 23 POS 4mm Solder RA Side Entry Thru-Hole Automotive

Online Components:
23 POS AMPSEAL HDR SNAP IN W/G

Electro Sonic:
23 POS AMPSEAL HDR SNAP IN W/G
