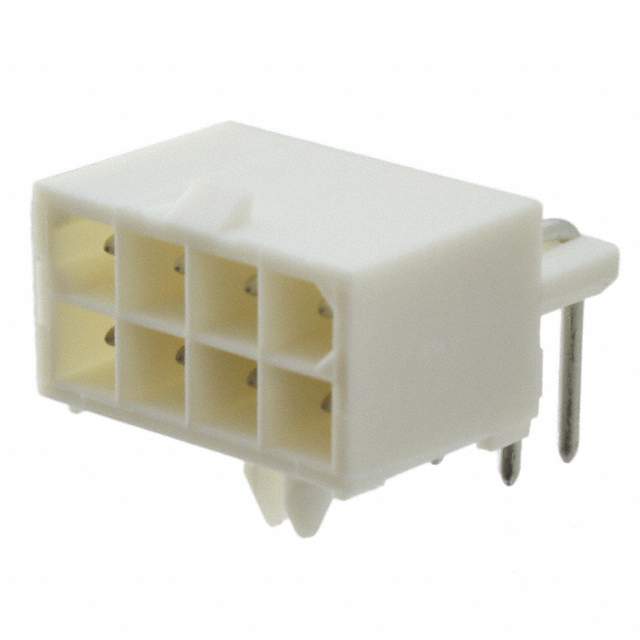

770970-1

Conn Power PIN 8POS 4.14mm Solder RA Thru-Hole 8 Terminal 1Port

08P MINI UMNL R/A HDR ASSY SN

Product Highlights

Header

Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2

Number of Circuits = 8

4.14 x 4.14 mm Centerline, Matrix

Double-Row Contact Layout

得捷:
CONN HEADER R/A 8POS 4.14MM

艾睿:
Use the 770970-1 power connector from TE Connectivity to power up your circuit with the least amount of losses. This HDR connector&s;s 8 contacts that are made out of brass and plated with tin-lead. It has a maximum voltage rating of 600 VAC. This connector has a single port. It has a header type gender. It has a right angle body orientation. Its pitch is 4.14 mm. This device has a maximum current rating of 9.5 A/contact. 770970-1 is housed in nylon. Its 8 terminals use the solder termination method. This product is 11.86 mm tall.

安富利:
Conn Power PIN 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port

MASTER:
HEADER ASSEMBLY, RIGHT ANGLE, WITH SHORT PEG, 8 CIRCUIT, MINI UNIVERSAL MATE-N-LOKTM

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
08P MINI UMNL R/A HDR ASSY SN

Electro Sonic:
08P MINI UMNL R/A HDR ASSY SN
