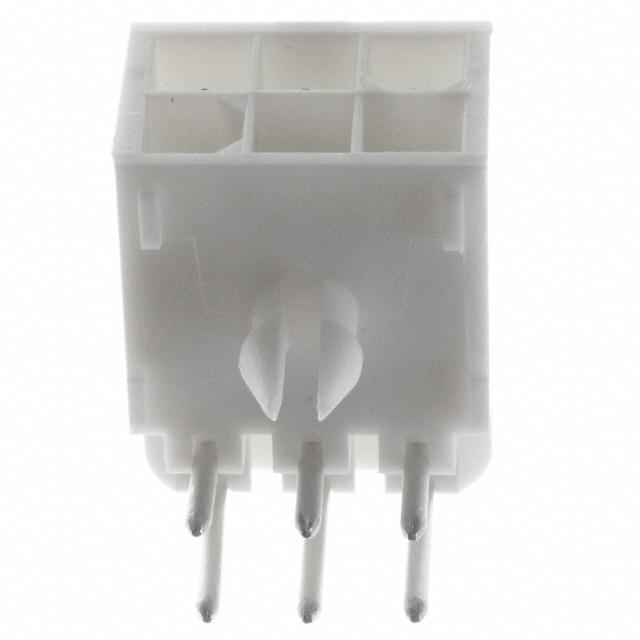

770969-1

Conn Power PIN 6POS 4.14mm Solder RA Thru-Hole 6 Terminal 1Port

06P MINI UMNL R/A HDR ASSY SN

Product Highlights

Header

Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2

Number of Circuits = 6

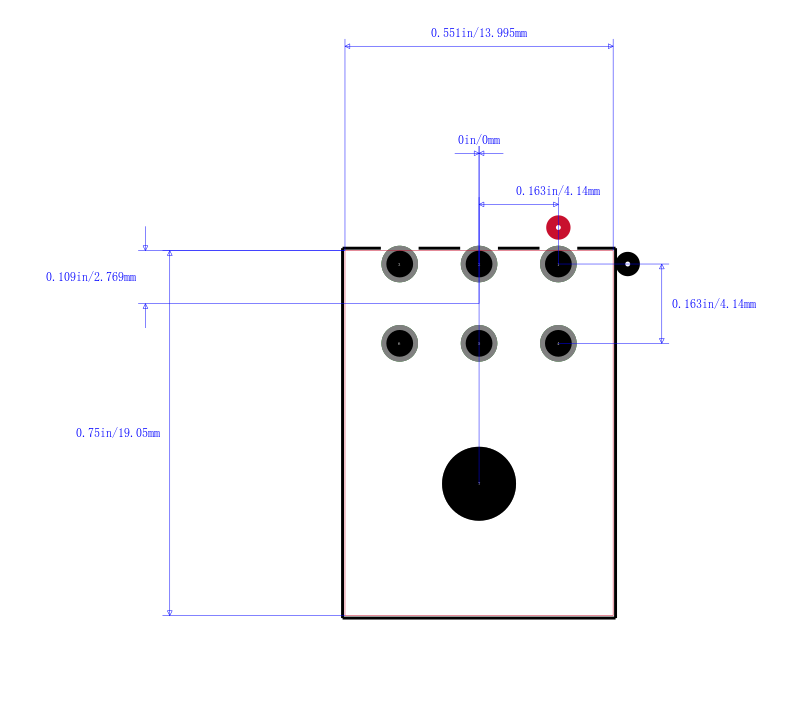

4.14 x 4.14 mm Centerline, Matrix

Double-Row Contact Layout

得捷:
CONN HEADER R/A 6POS 4.14MM

贸泽:
Pin & Socket Connectors 6P MINI HEADER

艾睿:
Harsh and stressful environments are no match for this robust 770969-1 power connector from TE Connectivity. This HDR connector&s;s 6 contacts that are made out of brass and plated with tin-lead over nickel. It has a right angle body orientation. Its pitch is 4.14 mm. It has a header type gender. It has a maximum voltage rating of 600 VAC. This connector has a single port. This device has a maximum current rating of 9.5 A/contact. 770969-1 is housed in nylon. This product is 11.86 mm tall. Its 6 terminals use the solder termination method.

Jameco:
Connector Power PIN 6 Position 4.14mm Solder Right Angle Thru-Hole 6 Terminal 1 Port

安富利:
Conn Power PIN 6 POS 4.14mm Solder RA Thru-Hole 6 Terminal 1 Port

Verical:
Conn Power HDR 6 POS 4.14mm Solder RA Thru-Hole 6 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  770969-1  Wire-To-Board Connector, 4.14 mm, 6 Contacts, Header, Mini Universal MATE-N-LOK Series

MASTER:
06P MINI UMNL R/A HDR ASSY SN

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
06P MINI UMNL R/A HDR ASSY SN

Electro Sonic:
06P MINI UMNL R/A HDR ASSY SN
