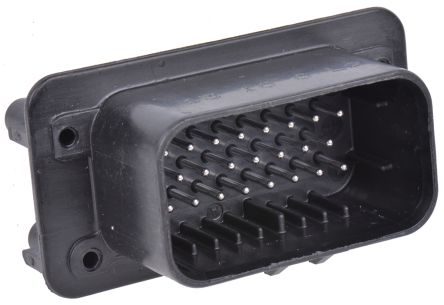

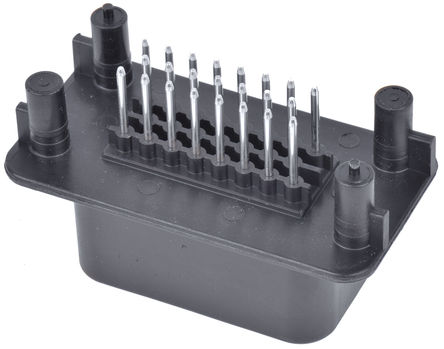

TE Connectivity AMPSEAL HeadersAMPSEAL automotive PCB mount headers with coloured keying and a 4mm centerline. These AMPSEAL automotive PCB mount headers are available with vertical or right angle mounting.### TE Connectivity AMPSEALAMPSEAL 连接器以其坚固的可靠性(甚至在高温汽车和工业应用中)而著称。 这些重型连接器不仅防水,还因其接口和电线的 2 路密封而潜在水中。
AMPSEAL 管座
AMPSEAL 汽车印刷电路板安装管座,带彩色键接和 4mm 中心线。这些 AMPSEAL 汽车印刷电路安装板管座提供垂直或直角安装。
得捷:
HDR ASSY,23 POS. VERTICAL BLK
欧时:
TE Connectivity AMPSEAL 系列 3行 23路 面板安装 黑色 公 印刷电路板连接器 776200-1, 焊接端接
立创商城:
776200-1
贸泽:
Automotive Connectors HDR ASSY 23 POS.VERT BLK
艾睿:
The 776200-1 power connector from TE Connectivity is perfect for powering your circuit because it comes with the least amount of losses. This PL connector&s;s 23 contacts that are made out of brass and plated with tin. Its pitch is 4 mm. It has a straight body orientation. This connector has a single port. It has a plug type gender. 776200-1 is housed in polybutylene terephthalate. This power connector has an operating temperature range of -40 °C to 105 °C. Its 23 terminals use the solder termination method. This product is 60.8 mm long, 34.25 mm tall and 32.1 mm deep.
Allied Electronics:
AMPSEAL 23 way vertical plug header
安富利:
Conn Power PL 23 POS 4mm Solder ST Thru-Hole
Verical:
Automotive Truck Bus and Off-Road Headers
MASTER:
ASSEMBLY, HEADER, 23 POSITION, VERTICAL, AMPSEAL
Online Components:
HDR ASSY,23 POS. VERTICAL BLK
Electro Sonic:
HDR ASSY,23 POS. VERTICAL BLK
触点数 23
极性 Male
触点电镀 Tin
额定电流 8 A
排数 3
易燃性等级 UL 94 V-0
针脚数 23
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 250 VAC
安装方式 Through Hole
封装 -
宽度 60.8 mm
高度 34.25 mm
封装 -
颜色 Black
触点材质 Brass
材质 Plastic
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 汽车级,工业级, Power, Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
