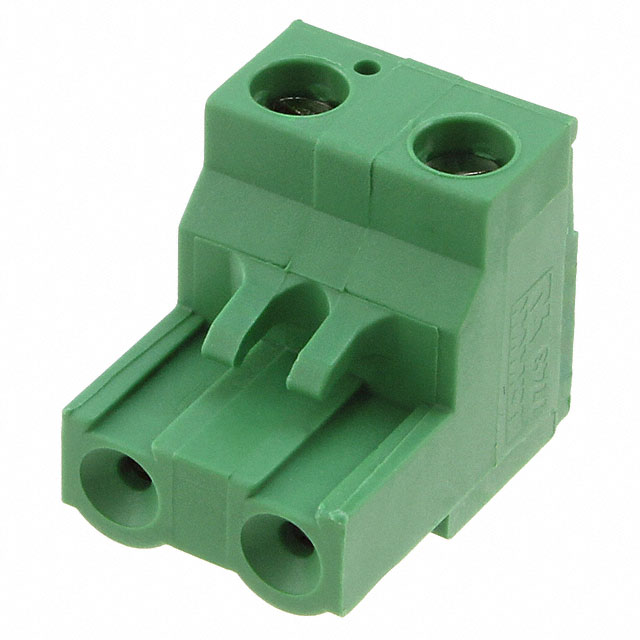

796981-2

Conn Terminal Block F 2POS 7.62mm Screw RA Cable Mount 15A/Contact

2 POS TERMI-BLOK R/A PLUG 7.62

Product Highlights

Connector

Connector Type = Plug

Not Shrouded

Housing Color = Green

Side Stackable

得捷:
TERM BLOCK PLUG 2POS STR 7.62MM

贸泽:
Pluggable Terminal Blocks 2 POS TERM-BLOK PLUG

艾睿:
Need to ensure strong connections between circuits? This eurostyle block 796981-2 PCB terminal block from TE Connectivity will do just that! This F connector&s;s 2 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a right angle body orientation. Its pitch is 7.62 mm. It has a female type gender. This device has a maximum current rating of 15 A/contact. 796981-2 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 13.24 mm long, 15.5 mm tall and 18.4 mm deep. Its wire is 12-30 AWG. It uses the screw termination method.

安富利:
Conn Terminal Block F 2 POS 7.62mm Screw RA Cable Mount 15A/Contact

Chip1Stop:
Conn Eurostyle Block F 2 POS 7.62mm Screw RA Cable Mount 15A/Contact Carton

Verical:
Conn Eurostyle Block F 2 POS 7.62mm Screw RA Cable Mount 15A/Contact Carton

Newark:
# AMP - TE CONNECTIVITY  796981-2  2 POS TERMI-BLOK R/A PLUG 7.62 New

MASTER:
TERMINAL BLOCK, PLUG 7.62mm PITCH

Powell:
Terminal Block Connectors

Online Components:
2 POS TERMI-BLOK R/A PLUG 7.62

Electro Sonic:
2 POS TERMI-BLOK R/A PLUG 7.62
