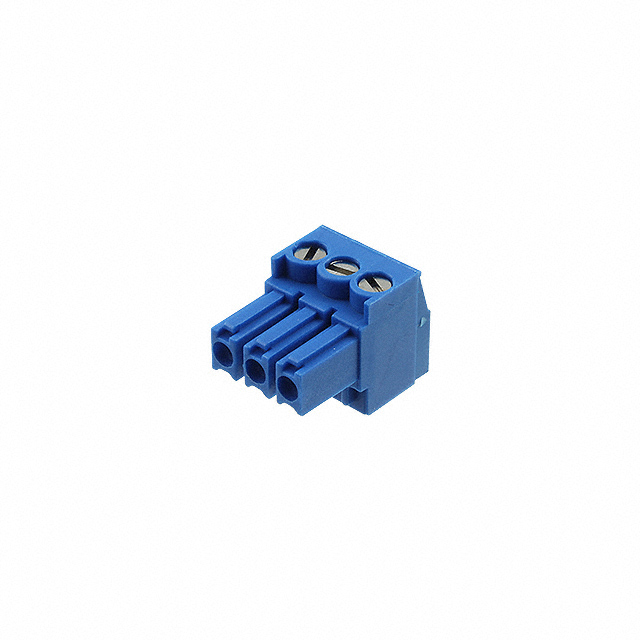

Conn Terminal Block F 3POS 3.5mm Screw RA Cable Mount 11A/Contact
3 针位端子块 插头,母插口 0.138"(3.50mm) - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 3POS STR 3.5MM
艾睿:
This eurostyle block 796693-3 PCB terminal block developed by TE Connectivity will mend different gage wires together. This F connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin. It has a female type gender. Its pitch is 3.5 mm. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a right angle body orientation. 796693-3 is housed in polyamide 6/6. This device has a maximum current rating of 11 A/contact. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 10.5 mm long, 11.1 mm tall and 15.5 mm deep. Its wire is 14-30 AWG. It uses the screw termination method.
安富利:
Conn Terminal Block F 3 POS 3.5mm Screw RA Cable Mount 11A/Contact
Chip1Stop:
Conn Terminal Block F 3 POS 3.5mm Screw RA Cable Mount 11A/Contact
Verical:
Conn Eurostyle Block F 3 POS 3.5mm Screw RA Cable Mount 11A/Contact Box
MASTER:
TERMI BLOK, PLUG, STACKING 3.5 mm PITCH
Powell:
Terminal Block Connectors
Online Components:
3 POS TERMI-BLOK PLUG STACK
Electro Sonic:
3 POS TERMI-BLOK PLUG STACK
触点数 3
线规 14AWG ~ 30AWG
触点电镀 Tin
排数 1
电路数 3
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 11A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
工作电压Max 300 VAC
长度 10.5 mm
宽度 15.5 mm
高度 11.1 mm
外壳颜色 Blue
颜色 Blue
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
