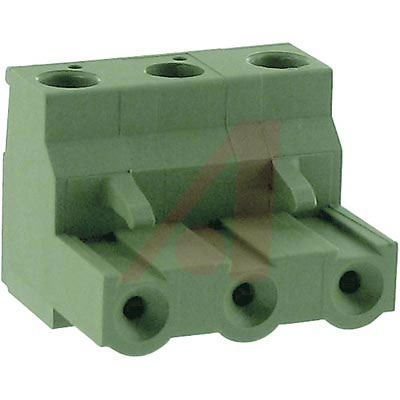

796981-3

Conn; Term Blk; PCB; Plug; Screw; 3; 7.62mm; 30-12AWG; Green; 15A; 300V; M 3

3 针位端子块 插头，母插口 0.300"（7.62mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 3POS STR 7.62MM

艾睿:
Never worry about wires becoming undone by implementing this eurostyle block 796981-3 PCB terminal block developed by TE Connectivity. This F connector&s;s 3 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. It has a maximum voltage rating of 300 VAC. It has a right angle body orientation. This is a 1-row connector. Its pitch is 7.62 mm. It has a female type gender. This device has a maximum current rating of 15 A/contact. 796981-3 is housed in polyamide 6/6. This product is 20.86 mm long, 15.5 mm tall and 18.4 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 12-30 AWG. It uses the screw termination method.

Allied Electronics:
Conn; Term Blk; PCB; Plug; Screw; 3; 7.62 mm; 30-12 AWG; Green; 15 A; 300 V; M 3

安富利:
Conn Terminal Block F 3 POS 7.62mm Screw RA Cable Mount 15A/Contact

Verical:
Conn Eurostyle Block F 3 POS 7.62mm Screw RA Cable Mount 15A/Contact Box

Powell:
Terminal Block Connectors

Online Components:
3 POS TERMI-BLOK R/A PLUG 7.62

Electro Sonic:
3 POS TERMI-BLOK R/A PLUG 7.62
