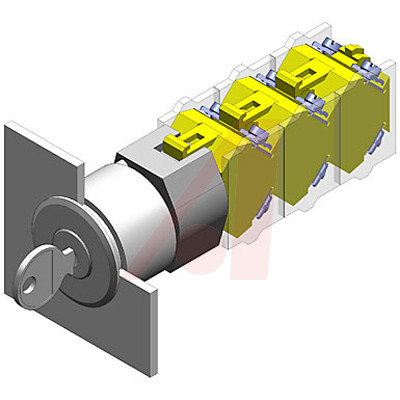

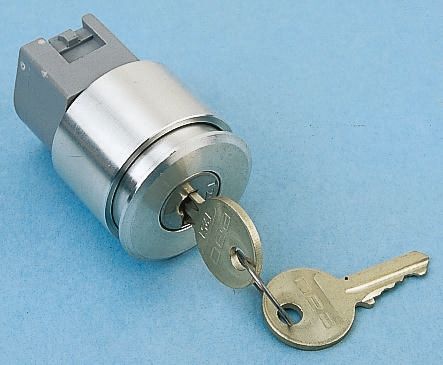

Flush Key Switch Actuator Series 04
Round-fronted key switch bodies Ø 35 mm for panel mounting.
Contact block ordered separately.
Mechanical service life: | > 5 x 104 operations
---|---
Panel cutout: | Ø 31 mm
Panel thickness: | 6 mm max.
Operating temperature: | –25°C to +55°C
Protection index: | IP 65
Number of positions | Type of action | Stock no.
---|---|---
2 | Maintained-momentary |
279-0086
2 | Maintained-maintained |
279-0092
3 | Momentary-maintained-momentary |
279-0115
3 | Maintained-maintained-maintained |
279-0121
### 认可
SEV, UL, CSA, NEMKO, VDE
