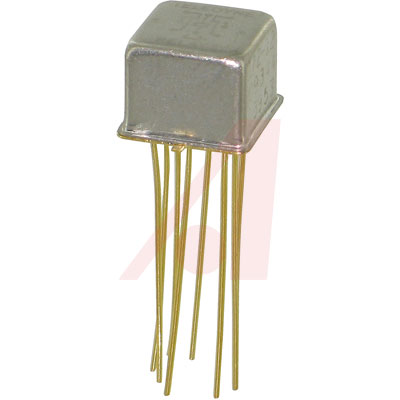

Electromechanical Relay DPDT 1ADC/0.25AAC 5VDC 100Ω Through Hole
PC Board Mount, 0.4 pF Typ. Capacitance, 732 Series Commercial Sensitive DPDT Relays
* All welded construction
* Unique uni-frame design providing high magnetic efficiency and mechanical rigidity
* High force/mass ratios for resistance to shock and vibration
* Advanced cleaning techniques provide maximum assurance of internal cleanliness
* Precious metal alloy contact material with gold plating assures excellent high current and dry circuit switching capabilities
* Hermetically Sealed
* Surface Mount S172 Series
* Gold-Plated Contacts
* Dry Circuit to 1 A, 28 VDC
* Excellent RF Performance, DC to 1 GHz
额定电压DC 250 V
额定电流 1 A
电容 0.4 pF
触点类型 DPDT
功耗 200 mW
线圈电压 5.00 V
线圈电流 50 mA
线圈电阻 100 Ω
线圈电压DC 5 V
额定电压 115 VAC
额定电压DC Max 28 V
额定电压AC Max 115 V
安装方式 Through Hole
引脚数 8
封装 TO-5
脚长度 0.75 in
封装 TO-5
触点材质 Precious Metal, Gold Plated
工作温度 -55℃ ~ 85℃
RoHS标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
