734-138

端子块, 针座, 3.5 mm, 8 路, 10 A, 300 V, 通孔竖直

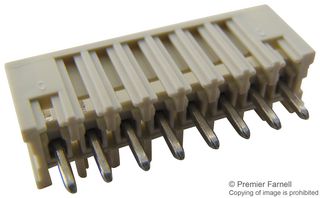

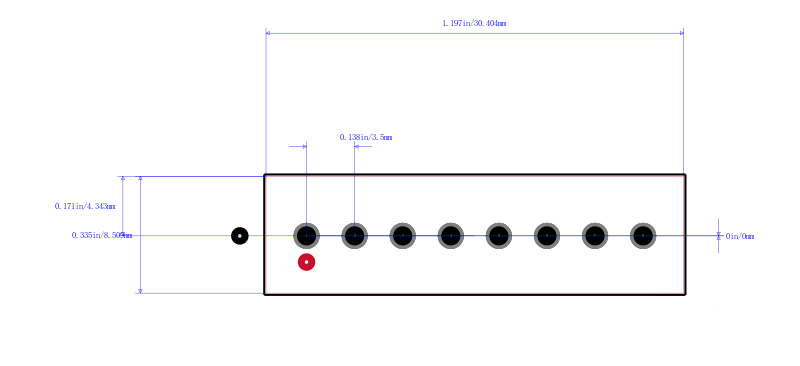

The from Wago is a light gray colour, 8-pole male header for PCBs with 3.5mm 0.138inch pin spacing and 0.6mm x 0.6mm press-in pins. It is 100% protected against mismating with closed ends, only mating halves with the same pole number can be connected together. The connector has tin plated copper alloy contacts and polyamide 66 PA 66 insulation. It has 1.564g weight and 30.4mm 1.197inch x 13.2mm 0.52inch x 8.5mm 0.335inch dimension W x H x D. Coding options are available. The connector has ABS, CCA, CSA, KEMA and UR E45171 Underwriters Laboratories Inc approvals.

.

Press-in pin dimension is 0.6mm x 1.2mm

.

Solder pin length is 4.5mm, vertical PCB mounting

.

Ratings per  IEC/EN 60664-1 standards and flammability class per UL94  V0

.

Robust housing, shock and vibration resistant

.

Rated impulse voltage of 2.5KV III/3, 2.5KV III/2 and 2.5KV II/2

.

Rated voltage of 160V III/2, 320V II /2 and rated current of 8A

.

Limit temperature range from -40°C to 85°C
