端子块, 针座, 3.81 mm, 8 路, 10 A, 300 V, 通孔竖直

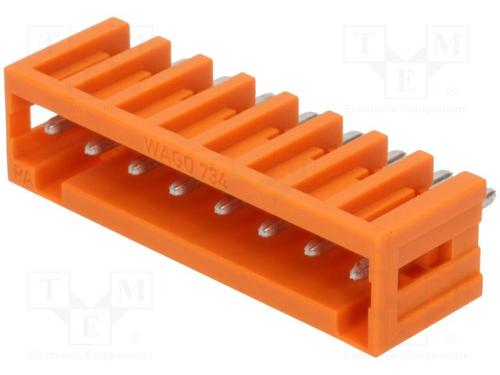

The from Wago is an orange colour, 8-pole male header for PCBs with 3.81mm 0.15inch pin spacing and 1mm x 1mm straight solder pin. It is 100% protected against mismating with closed end, only mating halves with the same pole number can be connected together. The connector has tin plated electrolytic copper Ecu contacts and polyamide 66 PA 66 insulation. It has 0.034MJ fire load, 1.93g weight and 32.57mm 1.282inch x 14.8mm 0.583inch x 8.5mm 0.335inch dimension W x H x D. Coding options are available. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 Underwriters Laboratories Inc and LR approvals.
