734-264

端子块, 针座, 3.81 mm, 4 路, 10 A, 300 V, 通孔直角

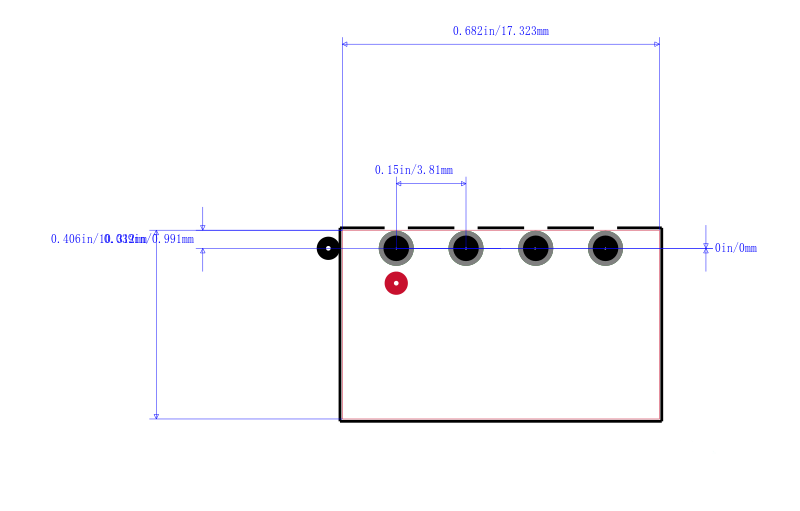

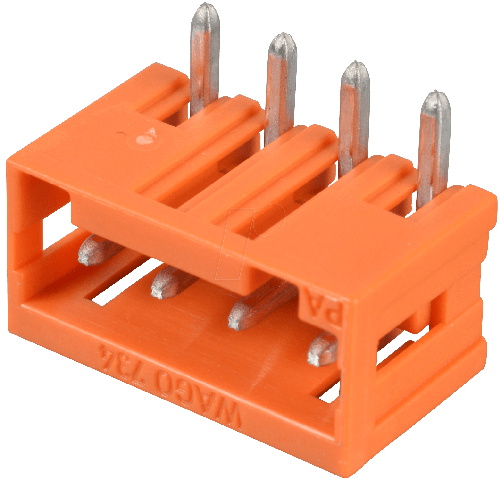

The from Wago is an orange colour, 4-pole male header for PCBs with 3.81mm 0.15inch pin spacing and 1mm x 1mm angled solder pin. It is 100% protected against mismating with closed end, only mating halves with the same pole number can be connected together. The connector has tin plated electrolytic copper Ecu contacts and polyamide 66 PA 66 insulation. It has 0.019MJ fire load, 1.148g weight and 17.33mm 0.682inch x 12.3mm 0.484inch x 10.3mm 0.406inch dimension W x H x D. Coding options are available. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 Underwriters Laboratories Inc and LR approvals.

.

1mm x 1mm pin cross section allows nominal current up to 10A

.

Horizontal PCB mounting

.

Solder pin length of 3.8mm

.

Ratings per  IEC/EN 60664-1 standards and flammability class per UL94  V0

.

Robust housing, shock and vibration resistant

.

Rated impulse voltage of 2.5KV III/3, 2.5KV III/2 and 2.5KV II/2

.

Rated voltage of 160V III/2, 320V II /2 and rated current of 10A

.

Limit temperature range from -60°C to 100°C
