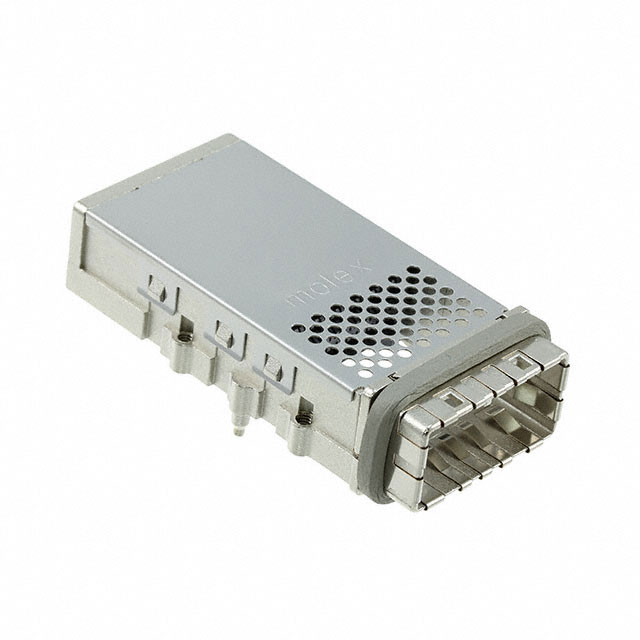

Conn I-Pass F 84POS 0.8mm Press Fit RA Thru-Hole 84 Terminal 1Port Tray
CXP Interconnect System
Achieve rates up to 120 Gbps of pluggable data over 12 lanes in one assembly while enhanced-footprint connectors transmit signals over 10 lanes for up to 100 Gbps, meeting the 100 Gigabit Ethernet specifications with the CXP Copper and Optical Interconnect System. "s CXP interconnect system enables pluggable copper or optical options to increase the flexibility of system-level hardware for end users. The dual paddle-card system was adopted as the InfiniBand- .
- CXP, 12x QDR and IEEE 802.3ba as the 100G Ethernet standard, providing 10 lanes of 10 Gbps data rates.

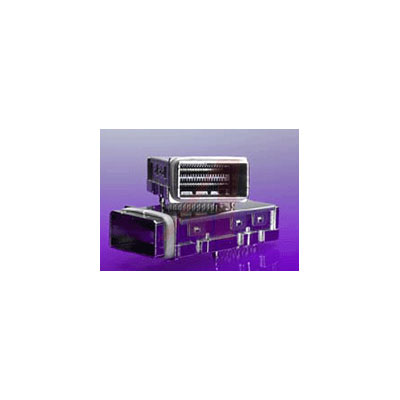

By leveraging high-speed wafer technology and compliant-pin tails, Molex has developed two integrated-connector offerings. The enhanced- footprint version is a high-density, 10-chanel connector, conforming to IEEE 802.3ba requirements for the 10-channel 100 Gigabit Ethernet interface. The standard version is a high-density, 12-channel connector capable of achieving Quad Data Rates QDR of 10 Gbps. The one-piece press-fit connector and cage assembly provides one-step placement to the board and is offered in both single and stacked dual-port configurations.
Copper cables are designed to accommodate single, ganged or stacked connector configurations in extremely high-density requirements. Low profile CXP optical 4.50mm round cable assemblies offer improved fiber management over traditional flat cables for connecting CXP transceivers.
