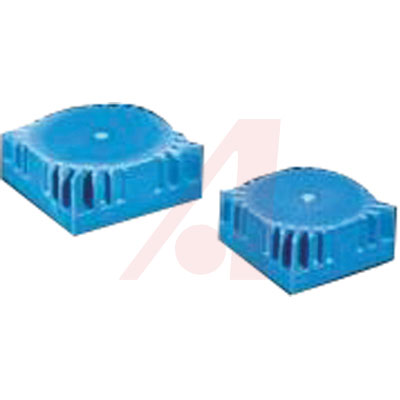

TRANSFORMER: PC MOUNT: LOW PROFILE: 15VA, SEC-FULL LOAD VAC 2X18, CURRENT 417M
The attractive 70000 Series PC Mount toroidal step-down transformers offers the design engineer the same features as our non-encapsulated toroidal power transformers, namely, very low EMR magnetic strayfields, quiet operation, low temperature rise, low profile, low no-load current and very low no-load losses.
**Features:
**
* Primary Voltage of 115 V or 230 V at 50/60 Hz
* Safety Standard Certifications UL 506, UL 1950 UL File #E145880, VDE 0805, IEC 950, EN 60950.60950
* UL File #122978 Recognized for Insulation Class A 105C — Meets All Requirements of Class E 125C
* UL and VDE Certifications to +40°C 1.6 VA-25 VA
* Hipot Testing at 4000 V Between Primary and Secondary VDE0550
* Maximum Ambient Temperature of +60°C for 1.6 VA- 25 VA, +40°C for 35 VA and 50 VA Models
* Custom Design Options with Minimum Order of 1000 Pieces Custom Specified Primary and Secondary Voltages Are Available
