74HCT1G86GV

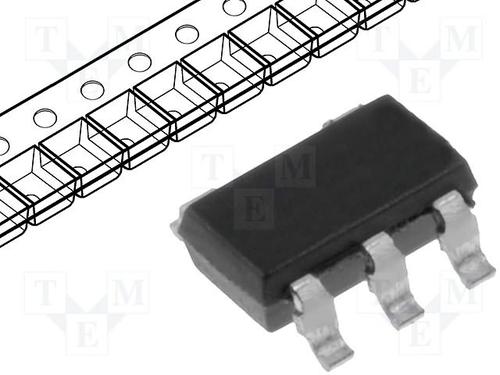

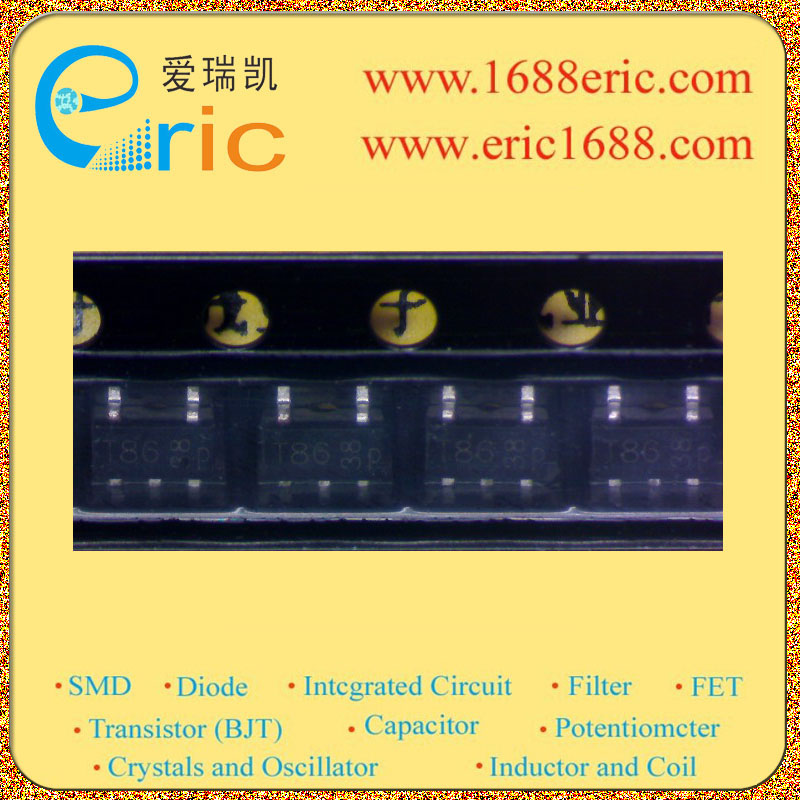

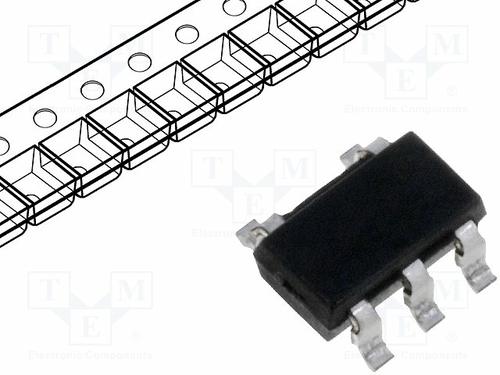

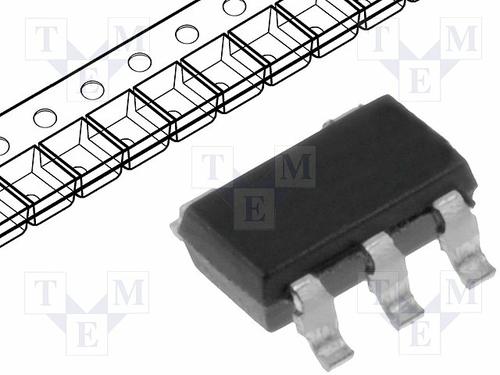

IC 异或门 74HCT1G86GV SOT-153/SC-74A marking/标记 T86

逻辑类型Logic Type| 异或门 XOR Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 4.5V~5.5V 静态电流IqCurrent - Quiescent Max| 20uA 输出高，低电平电流Current - Output High, Low| -2mA，2mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5V~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 13ns @ 4.5V，50pF Description & Applications| 2-input EXCLUSIVE-OR gate；Features Symmetrical output impedance High noise immunity Low power dissipation Balanced propagation delays SOT353-1 and SOT753 package options Specified from −40 °C to +125 °C 描述与应用| 双输入异或门；特性 对称的输出阻抗 高抗干扰 低功耗 平衡传输时延 SOT353-1和SOT753封装选项 从-40°C至+125°C
