74ACT11240

具有三态输出的八路缓冲器和线路驱动器

This octal buffer or line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. This device provides inverting outputs and symmetrical active-low output-enable inputs. This device features high fan-out and improved fan-in.

The is characterized for operation from -40°C to 85°C.





.

Inputs Are TTL-Voltage Compatible

.

Flow-Through Architecture Optimizes PCB Layout

.

Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise

.

EPICTM Enhanced-Performance Implanted CMOS 1-m Process

.

500-mA Typical Latch-Up Immunity at 125°C

.

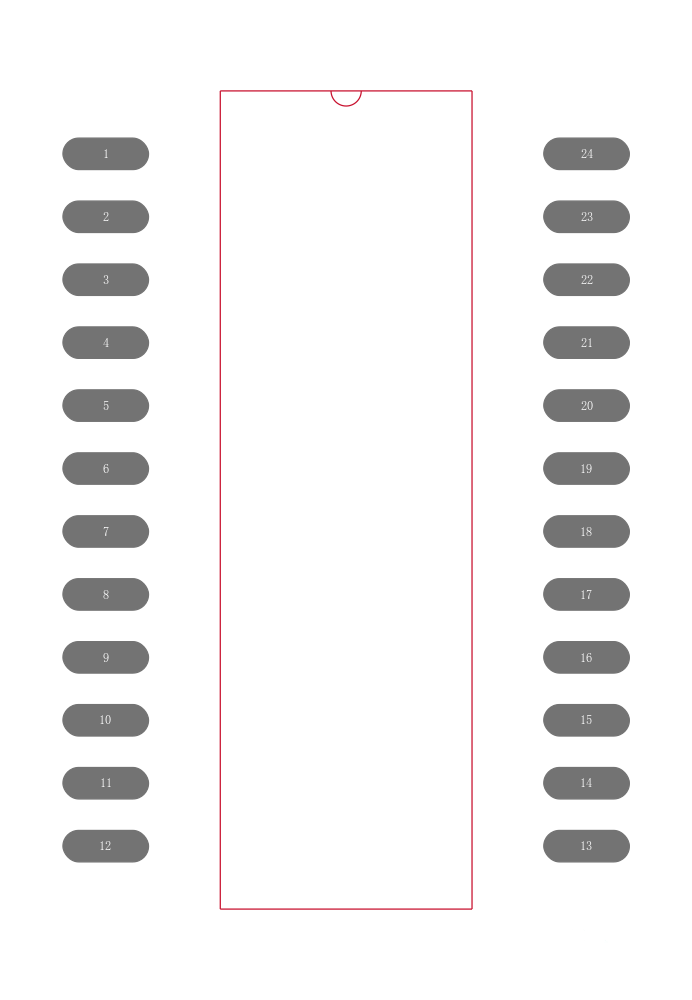

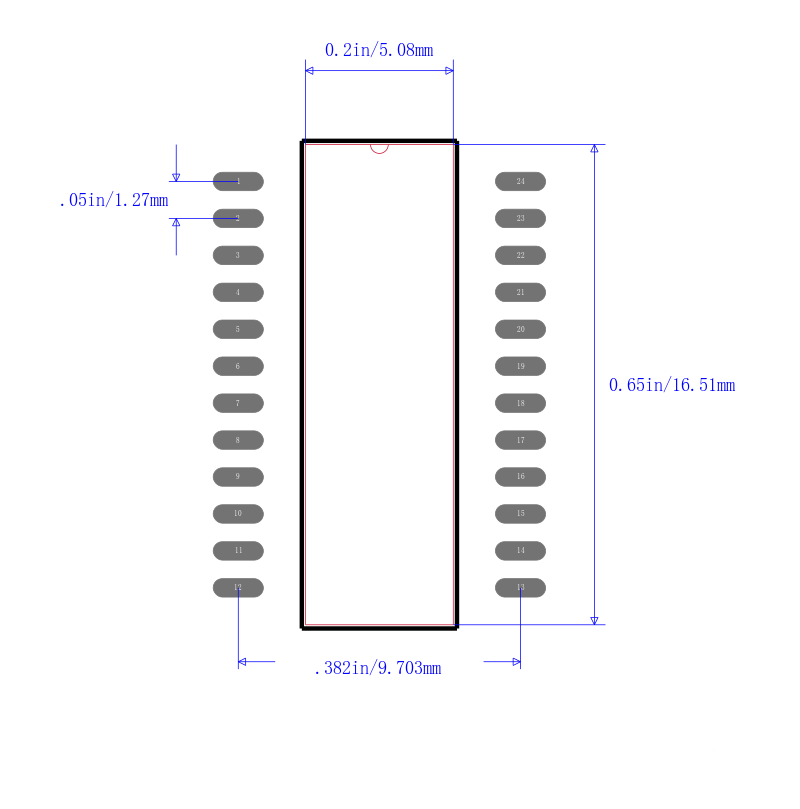

Package Options Include Plastic Small-Outline DW and Shrink Small-Outline DB Packages, and Standard Plastic 300-mil DIPs NT



EPIC is a trademark of Texas Instruments Incorporated.
