具有三态输出的 16 位透明 D 类锁存器

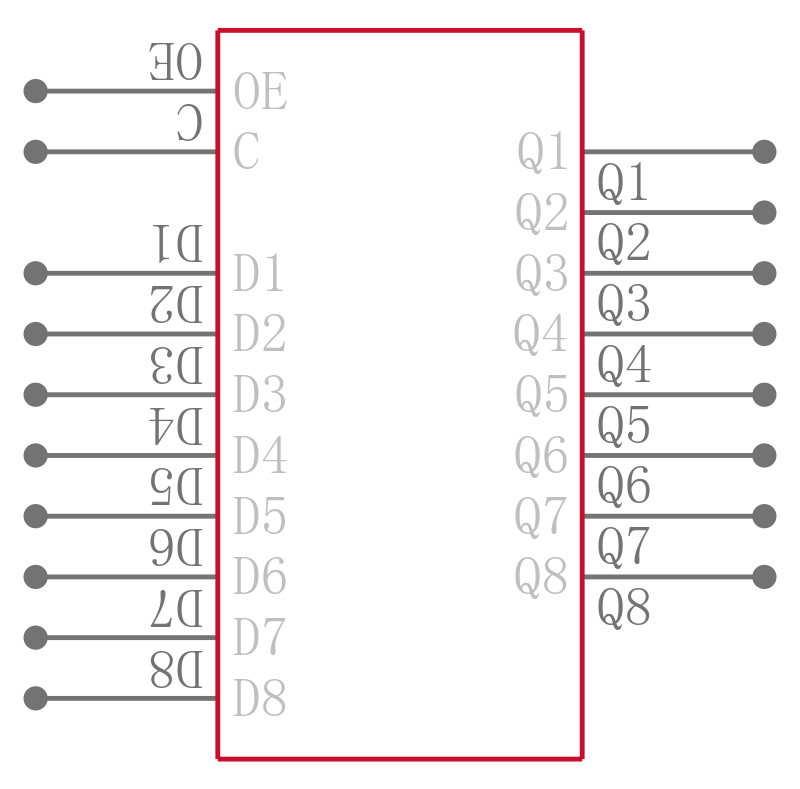

The "AC16373 are 16-bit transparent D-type latches with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The device can be used as two 8-bit latches or one 16-bit latch. When the latch-enable LE input is high, the Q outputs follow the data D inputs. When LE is taken low, the Q outputs are latched at the levels set up at the D inputs.
A buffered output-enable input can be used to place the eight outputs in either a normal logic state high or low logic levels or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components. does not affect internal operations of the latch. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

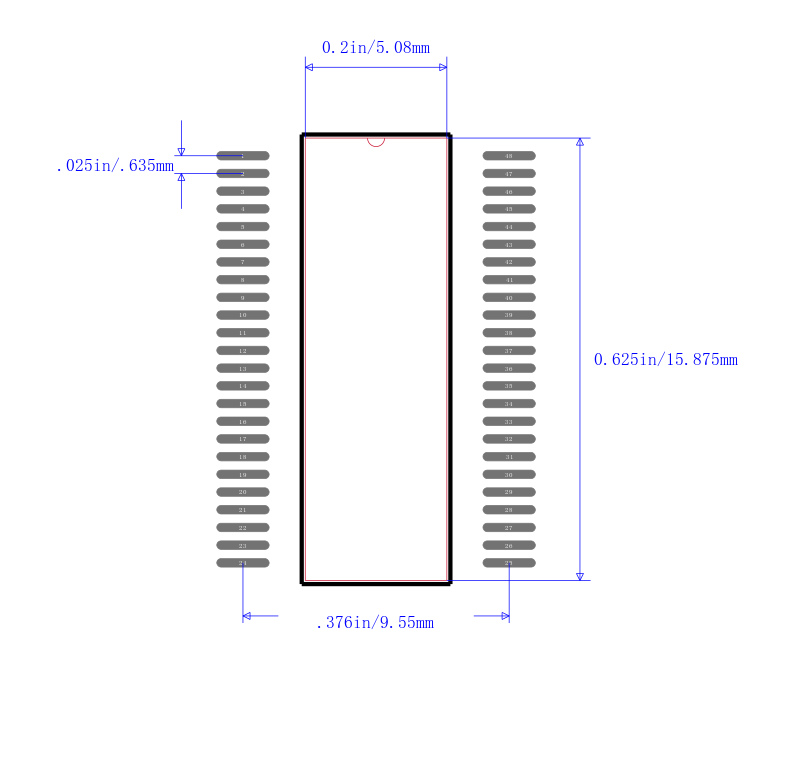

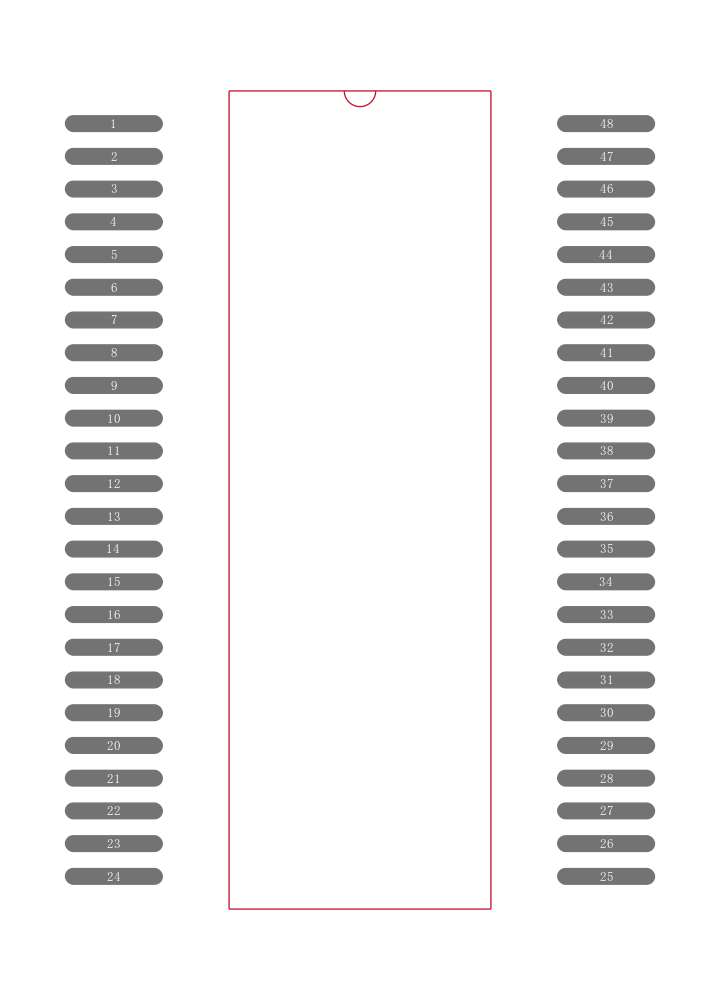

The is packaged in "s shrink small-outline package DL, which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.
The 54AC16373 is characterized for operation over the full military temperature range of -55°C to 125°C. The 74AC16373 is characterized for operation from -40°C to 85°C.
- .
- Members of the Texas Instruments WidebusTM Family
- .
- 3-State True Outputs
- .
- Full Parallel Access for Loading
- .
- Flow-Through Architecture Optimizes PCB Layout
- .
- Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
- .
- EPICTM Enhanced-Performance Implanted CMOS 1-m Process
- .
- 500-mA Typical Latch-Up Immunity at 125°C
- .
- Package Options Include Plastic 300-mil Shrink Small-Outline DL Packages Using 25-mil Center-to-Center Pin Spacings and 380-mil Fine-Pitch Ceramic Flat WD Packages Using 25-mil Center-to-Center Pin Spacings
EPIC and Widebus are trademarks of Texas Instruments Incorporated.
