16位总线收发器具有三态输出 16-BIT BUS TRANSCEIVERS WITH 3-STATE OUTPUTS
description
The ’AC16620 are inverting 16-bit transceivers designed for asynchronous communication between data buses. The control-function implementation allows for maximum flexibility in timing.
These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the complementary output-enable OEAB or OEBA inputs. The output-enable inputs can be used to disable the device so that the buses are effectively isolated.
• Members of the Texas Instruments Widebus Family
• 3-State Outputs Drive Bus Lines Directly
• Flow-Through Architecture Optimizes PCB Layout
• Distributed VCC and GND Pin Configurations Minimize High-Speed Switching Noise
• EPIC Enhanced-Performance Implanted CMOS 1-µm Process
• 500-mA Typical Latch-Up Immunity at 125°C

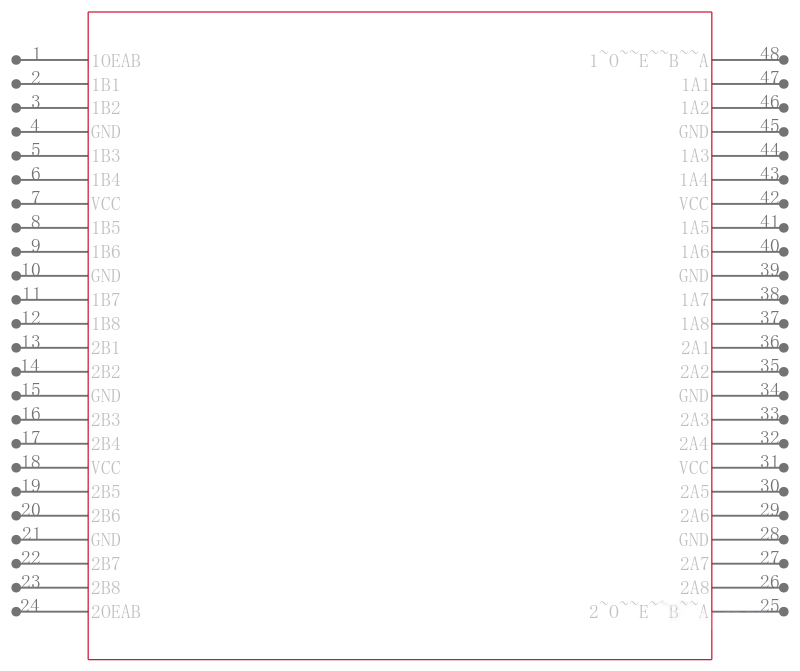

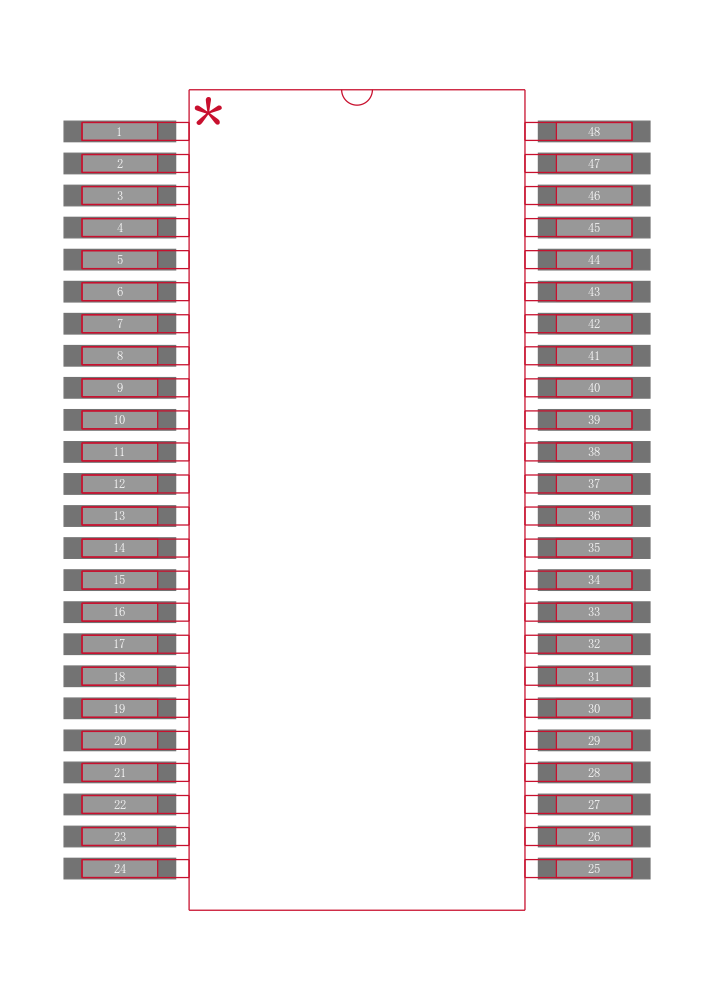

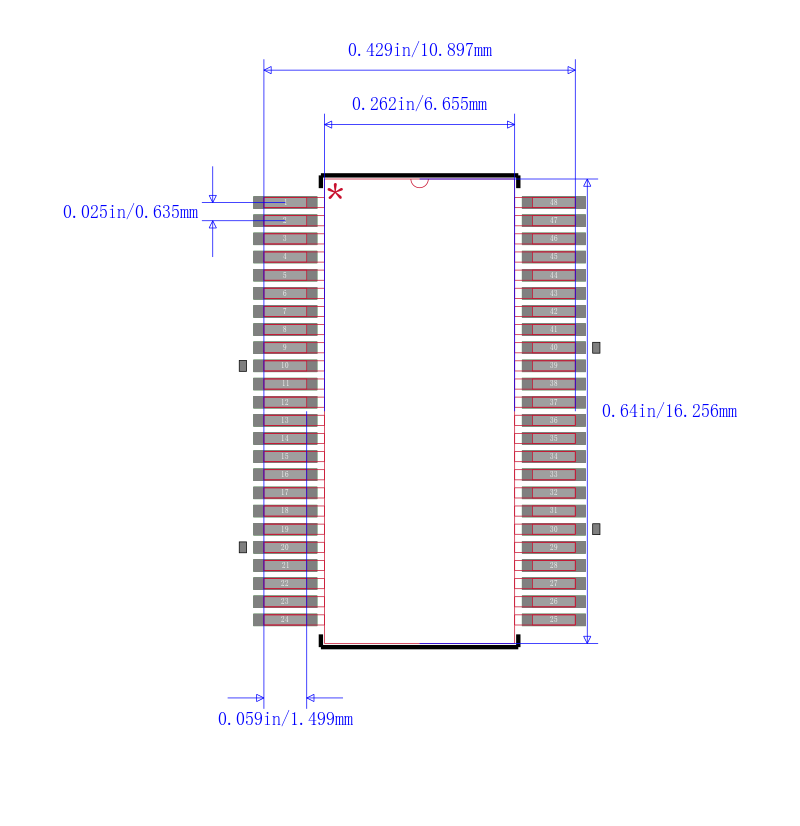

• Package Options Include Plastic 300-mil
Shrink Small-Outline DL Packages Using
25-mil Center-to-Center Pin Spacings and
380-mil Fine-Pitch Ceramic Flat WD
Packages Using 25-mil Center-to-Center
Pin Spacings
