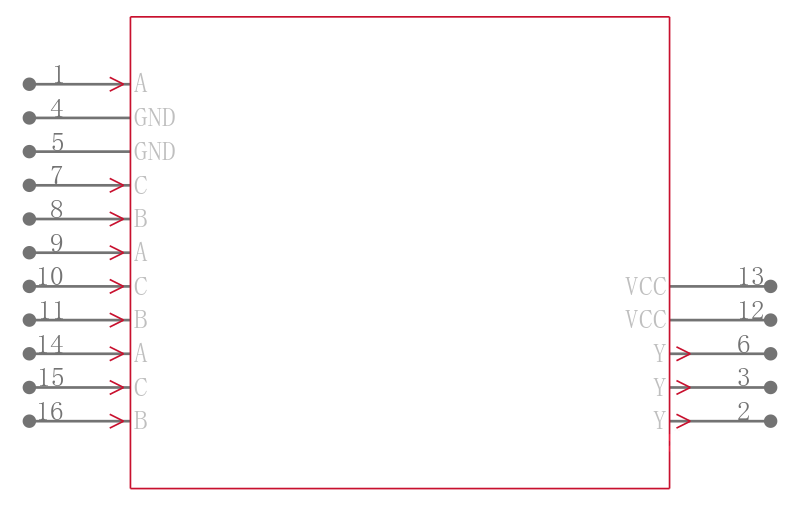

74AC11011D

Triple 3Input Positive-AND Gates 16-SOIC -40℃ to 85℃

description

These devices contain three independent 3-input AND gates. They perform the Boolean functions Y = A • B • C or Y = A + B + C in positive logic.

The 54AC11011 is characterized for operation over the full military temperature range of −55°C to 125°C. The 74AC11011 is characterized for operation from −40°C to 85°C.

• Flow-Through Architecture Optimizes PCB Layout

• Center-Pin VCC and GND Configuration Minimizes High-Speed Switching Noise

• EPIC Enhanced-Performance Implanted CMOS 1-µm Process

• 500-mA Typical Latch-Up Immunity at 125°C

• Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
