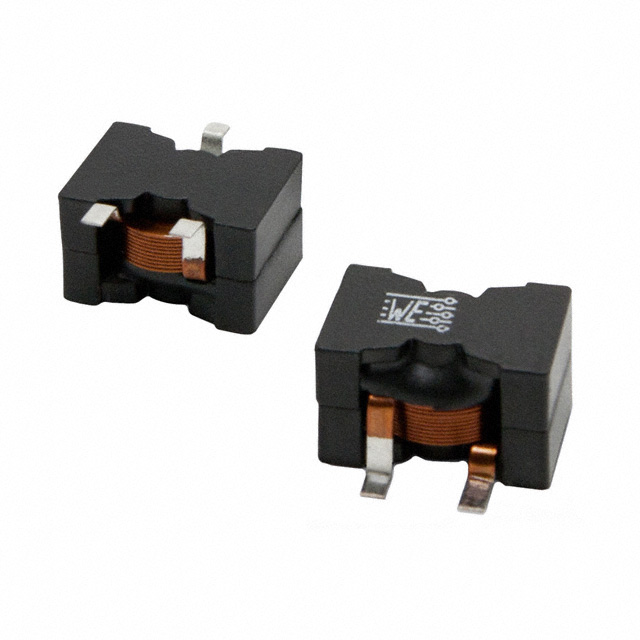

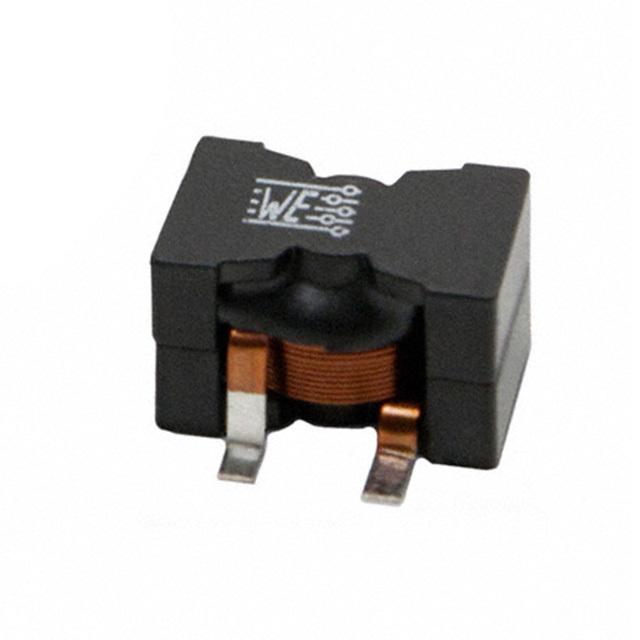

WURTH ELEKTRONIK 7443630310 表面贴装功率电感器, WE-HCF系列, 3.1 µH, ± 15%, 屏蔽, 2090 µohm, 26 A

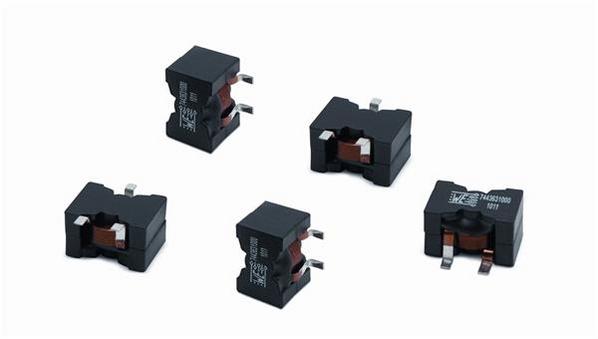

SMD High Current Inductor with PQ Core MnZn, WE-HCF, series is offered in flat wire package sizes 2013, 2818, and 2815 and has been extended to include Litz and round wire versions in 2920 package size. The WE-HCF series has a saturation current up to 125A and inductance values ranging from 0.7µH to 680µH. The Litz and round wire versions feature a plastic base for better coplanarity and mechanical stability.
额定电流 26 A
容差 ±15 %
电感 3.1 µH
自谐频率 29 MHz
产品系列 WE-HCF
电阻 2.09 mΩ
共振频率 29.0 MHz
电感公差 ±15 %
测试频率 100 kHz
电阻DC) 2.09 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.00209 Ω
安装方式 Surface Mount
引脚数 3
封装 SMD
长度 21.5 mm
宽度 21 mm
高度 14 mm
封装 SMD
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
