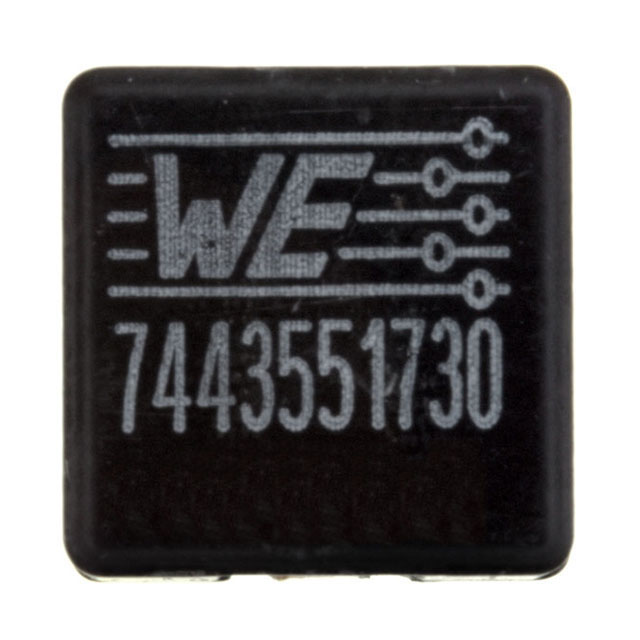

WURTH ELEKTRONIK 7443551730 表面贴装功率电感器, WE-HCI系列, 7.3 µH, ± 20%, 屏蔽, 5900 µohm, 13 A

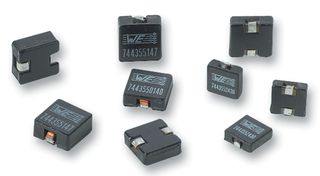

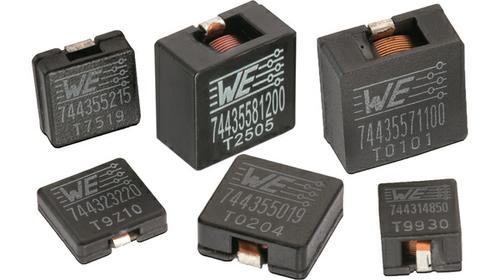

WE-HCI series is known within the electronics market to be the top of the line, high-current inductor family. Due to increased demand for smaller packages in even higher currents, Wurth Electronics offers numerous sizes ranging from 5x5x4 mm up to 22x22x12 mm, thus allowing you to find the optimum size for your circuit design. The high-current flat wire inductors offer the industry"s lowest DCRs for maximum performance in your DC/DC converter.
额定电流 13 A
容差 ±20 %
电感 7.3 µH
自谐频率 28 MHz
产品系列 WE-HCI
电阻 5.90 mΩ
共振频率 28.0 MHz
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 5.9 mΩ
工作温度Max 155 ℃
工作温度Min 40 ℃
电阻DC Max 0.0059 Ω
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 13.2 mm
宽度 12.8 mm
高度 6.2 mm
封装 SMD
工作温度 -40℃ ~ 155℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
