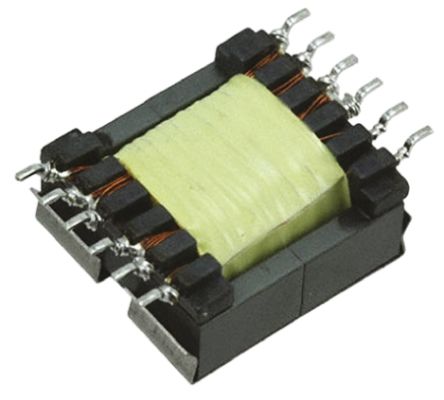

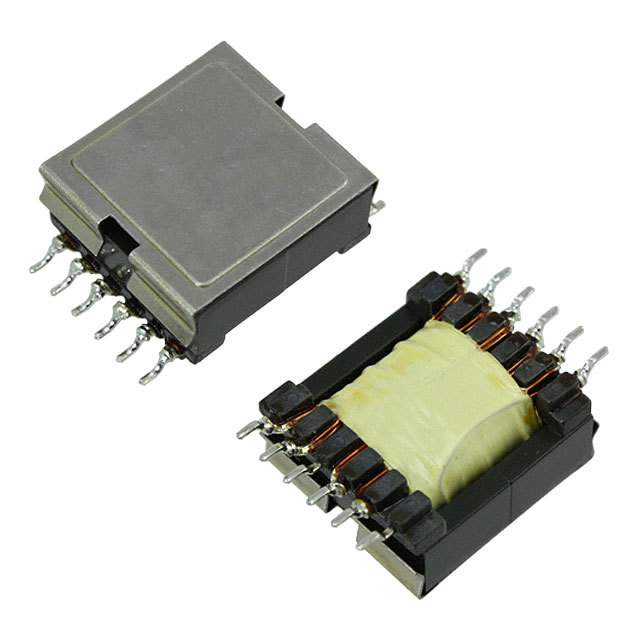

Wurth Flyback TransformersDesigned specifically for DC-DC convertors and offline PWM switching regulators The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency ### 600 Ohm 线路隔离，脉冲匹配和高频变压器
Wurth 回扫
专门设计用于直流-直流转换器和离线 PWM 开关调节器
对于相同功率等级，该变压器因其高工作频率而比正常的电源变压器更小。
得捷:
TRANS FLYBACK LT3748 8UH SMD
欧时:
### Wurth Flyback TransformersDesigned specifically for DC-DC convertors and offline PWM switching regulators The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency ### 600 Ohm 线路隔离，脉冲匹配和高频变压器
贸泽:
Audio Transformers / Signal Transformers WE-FB Flyback 8.0uH 1.3 24V
Win Source:
TRANS FLYBACK LT3748 8UH SMD / Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation Surface Mount
额定电流 9.5 A
输出电压 24.0 V
电感 8 µH
隔离电压 1500 Vrms
电阻DC） 0.03 Ω
工作温度Max 125 ℃
工作温度Min 40 ℃
电阻DC Max 55 mΩ
安装方式 Surface Mount
封装 29.08 mm x 23.11 mm x 11.43 mm
长度 29.08 mm
宽度 23.11 mm
高度 11.43 mm
封装 29.08 mm x 23.11 mm x 11.43 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 回扫转换器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
