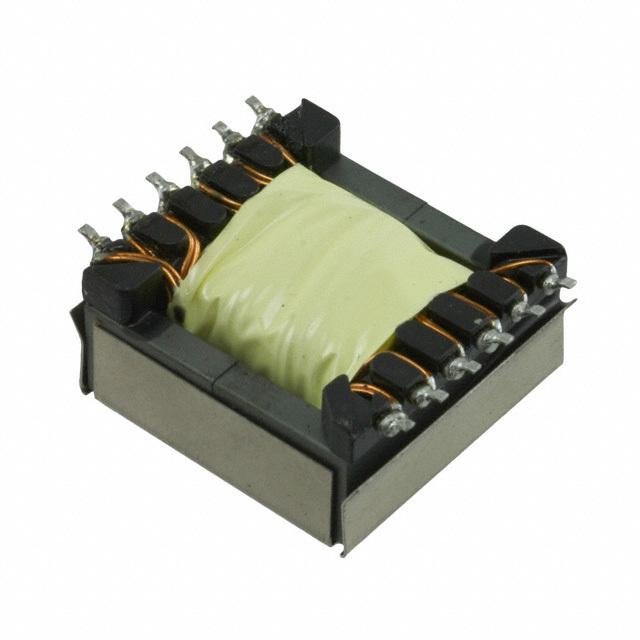

WURTH ELEKTRONIK 750311591 脉冲变压器, 1.5:1, 8 µH, 0.015 ohm, 1.5 kV, Flyback Transformer 75031 Series
Wurth 回扫
专门设计用于直流-直流转换器和离线 PWM 开关调节器
对于相同功率等级,该变压器因其高工作频率而比正常的电源变压器更小。
得捷:
TRANS FLYBACK LT3748 8UH SMD
欧时:
### Wurth Flyback TransformersDesigned specifically for DC-DC convertors and offline PWM switching regulators The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency ### 600 Ohm 线路隔离,脉冲匹配和高频变压器
e络盟:
脉冲变压器, 1.5:1, 8 µH, 0.015 ohm, 1.5 kV, Flyback Transformer 75031 Series
频率 150 kHz
额定电流 20 A
输出电压 15.0 V
电感 8 µH
隔离电压 1.5 kV
电阻DC) 0.015 Ω
电阻DC Max 18 mΩ
安装方式 Surface Mount
封装 32.31 mm x 27.03 mm x 13.69 mm
长度 32.31 mm
宽度 27.03 mm
高度 13.69 mm
封装 32.31 mm x 27.03 mm x 13.69 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络, 回扫转换器, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
