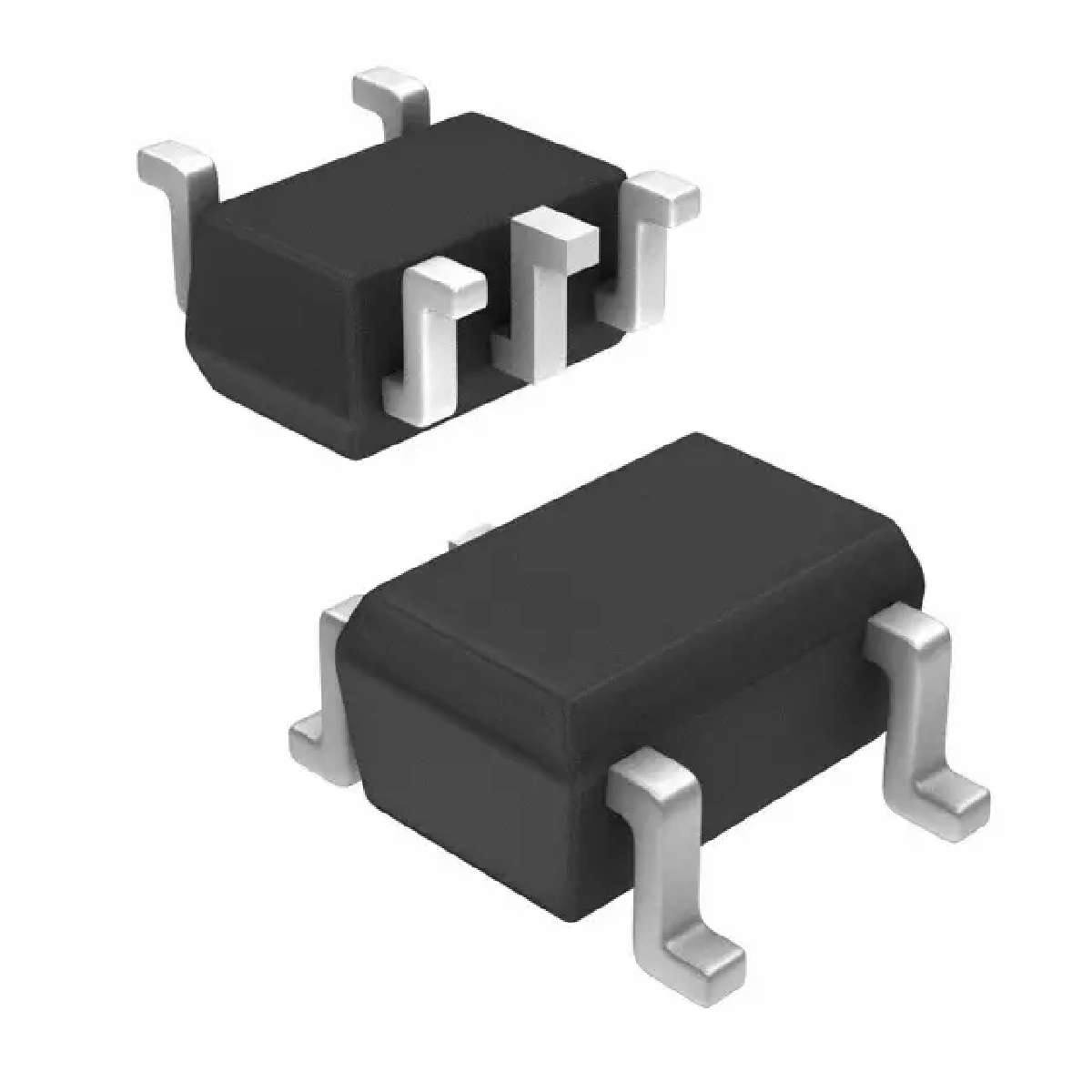

74LVC1G86 系列 5.5 V 表面贴装 单 双输入 异或门 - SOT-353
Thanks to Zetex and their logic gates, you can simplify your circuit down to a fundamental level. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V min
输出接口数 1
输出电流 32 mA
电路数 1
针脚数 5
逻辑门个数 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
宽度 2.2 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 成像, 工业, 音频, 计算机和计算机周边, 视频和目视, 通信与网络, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
