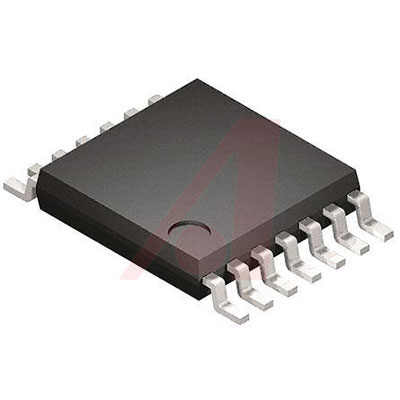

NAND Gate 4Element 2IN CMOS 14Pin TSSOP T/R
Description
The 74LV00A provides provides four independent 2-input NAND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 5.5V.
The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.
Features
• Wide Supply Voltage Range from 2.0V to 5.5V
• Sinks or sources 12mA at VCC = 4.5V
• CMOS low power consumption
• IOFF Supports Partial -Power Down Operation
• Inputs or Outputs accept up to 5.5V
• Inputs can be driven by 3.3V or 5V allowing for voltage translation applications.
• Schmitt Trigger Action at All Inputs
• ESD Protection Tested per JESD 22
• Exceeds 200-V Machine Model A115
• Exceeds 2000-V Human Body Model A114
• Exceeds 1000-V Charged Device Model C101
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Totally Lead-Free & Fully RoHS Compliant Notes 1 & 2
• Halogen and Antimony Free. “Green” Device Note 3
Applications
• General Purpose Logic
• Power Down Signal Isolation
• Wide array of products such as:
• PCs, networking, notebooks, ultrabooks, netbooks
• Computer peripherals, hard drives, CD/DVD ROM
• TV, DVD, DVR, set top box
