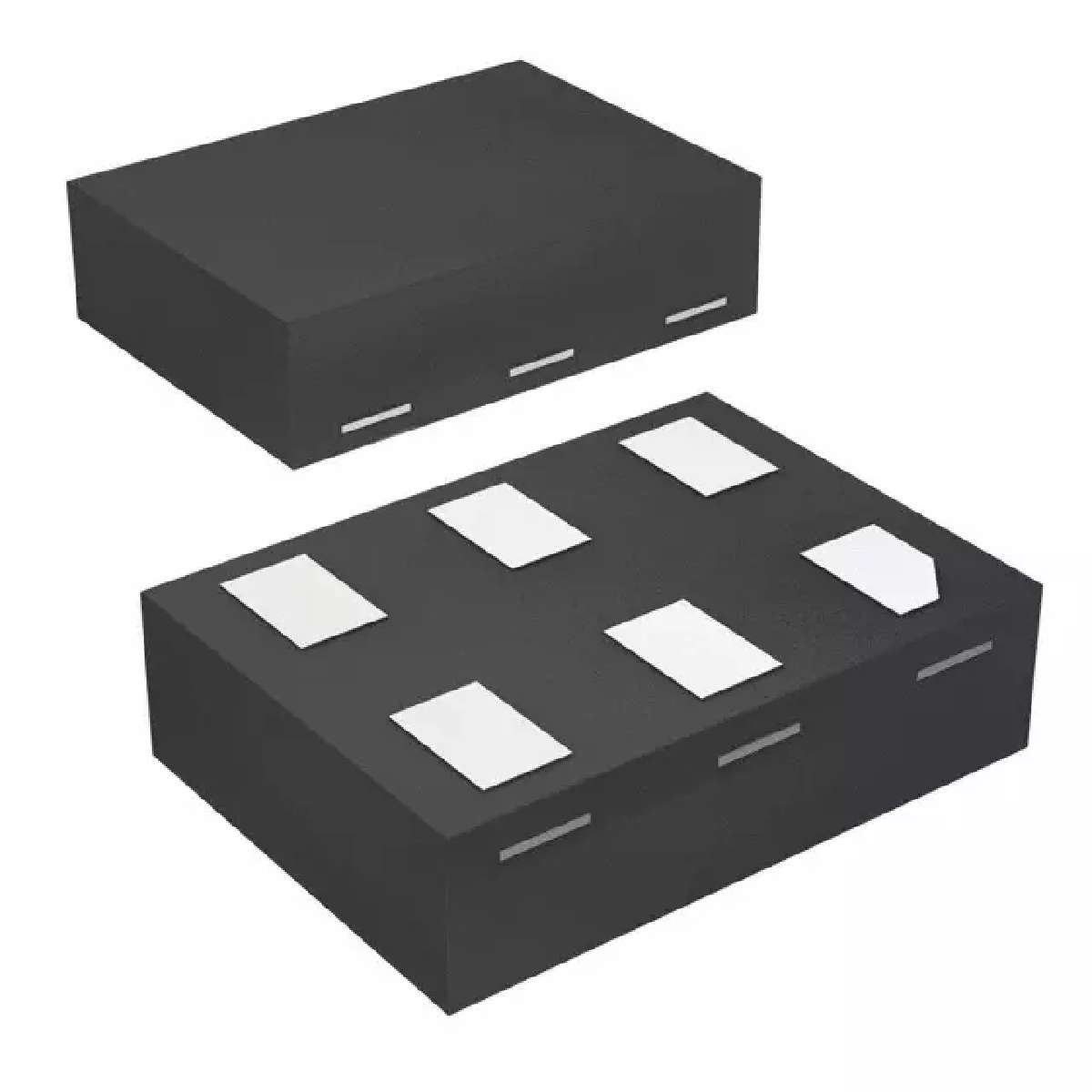

74LVC 系列 5.5 V 低功耗 可配置 多功能 门 - DFN1410
Description
The 74LVC1G57 is a single 3-input positive configurable multiple function gate with a standard push-pull output. The output state is determined by eight patterns of 3-bit input. The user can chose the logic functions AND, OR, NAND, NOR, XNOR, inverter or non-inverting buffer. All inputs can be connected to ground or Vcc as required. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment.
Features
• Wide Supply Voltage Range from 1.65V to 5.5V
• ± 24mA Output Drive at 3.3V
• CMOS low power consumption
• IOFF Supports Partial-Power-Down Mode Operation
• Inputs accept up to 5.5V
• ESD Protection Exceeds JESD 22
o 200-V Machine Model A115-A
o 2000-V Human Body Model A114-A
• Latch-Up Exceeds 100mA per JESD 78, Class II
• Range of Package Options
• SOT26, SOT363, DF1410, and DFN1010: Available in “Green” Molding Compound no Br, Sb
• Lead Free Finish/ RoHS Compliant Note 1
Applications
• Voltage Level Shifting
• General Purpose Logic
• Power Down Signal Isolation
• Wide array of products such as:
o PCs, networking, notebooks, netbooks, PDAs
o Computer peripherals, hard drives, CD/DVD ROM
o TV, DVD, DVR, set top box
o Cell Phones, Personal Navigation / GPS
o MP3 players ,Cameras, Video Recorders
