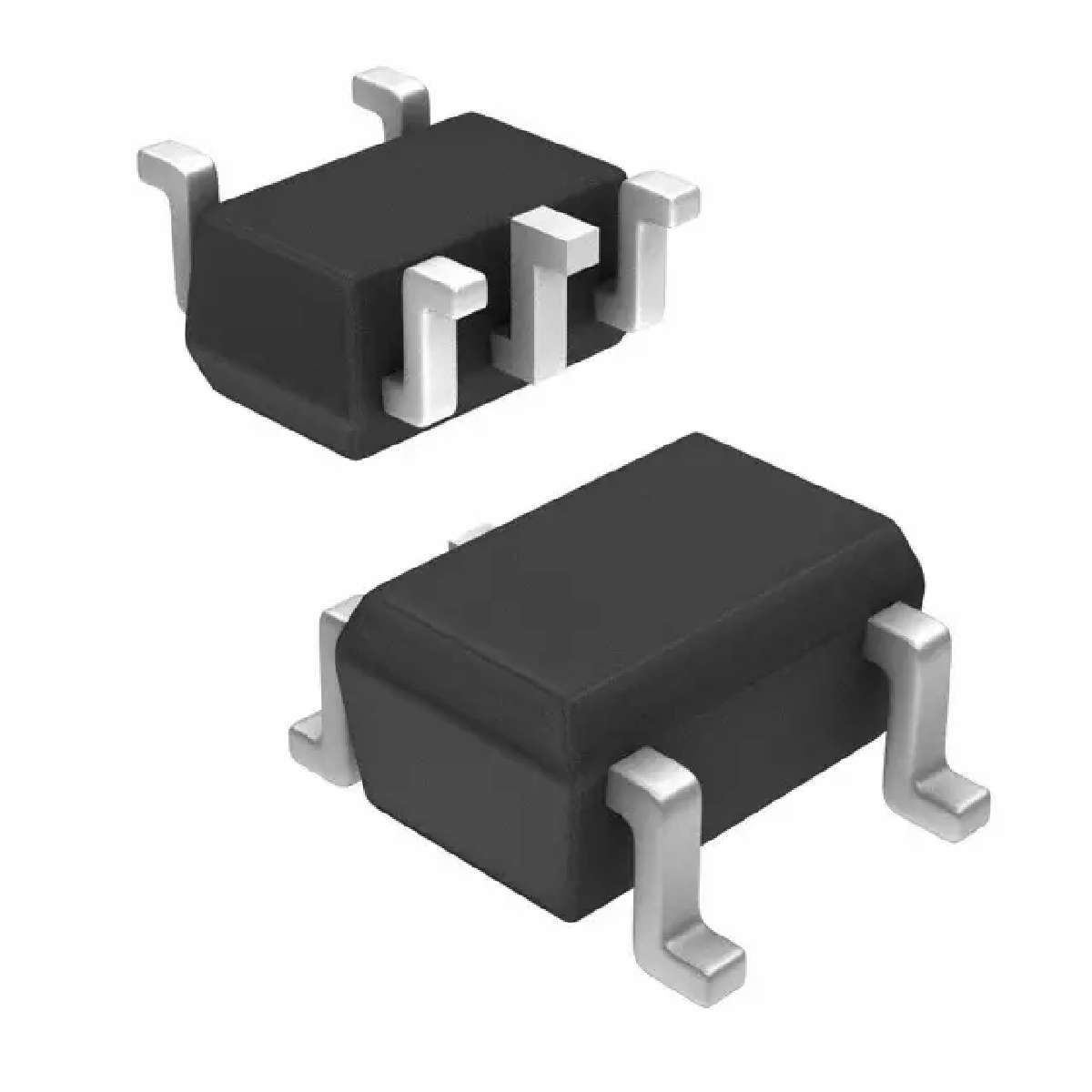

74LVCE 系列 1.4 - 5.5 V 单 2 输入 正 与非门 - SOT-353
logic gates from Zetex are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.4 V, while its maximum is 5.5 V.
输出接口数 1
输出电流 32 mA
电路数 1
逻辑门个数 1
输入数 2
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 1.4V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.4 V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
